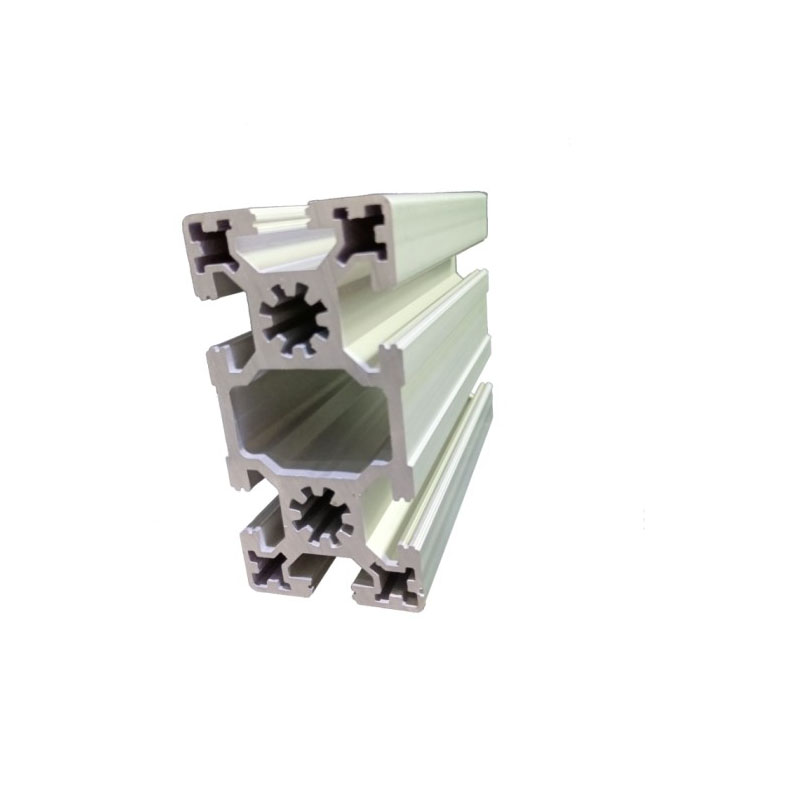

E&I-10-4590W T-slot aluminum profile, slot width 10mm, specification 45mm×90mm, anodized surface treatment, high strength, good corrosion resistance and wear resistance, suitable for various industrial applications in high-load and complex environments. Whether it is an automation equipment bracket, a mechanical bracket, or an industrial frame and support system, E&I-10-4590W can provide solid support to ensure the stability of the long-term operation of the equipment.
The profile has a modular design, which is easy to customize and adjust according to different needs. Whether it is building an automated assembly line, an electromechanical equipment bracket, or building a guardrail and exhibition structure, E&I-10-4590W can provide a flexible and reliable solution. Its good thermal conductivity and fatigue resistance ensure that the profile can still operate stably in high-frequency and high-load industrial environments.
In addition, the easy processing and economy of E&I-10-4590W make it very cost-effective in industrial production. Its high-precision processing and stable structural performance make E&I-10-4590W an ideal support material in modern industrial equipment and automation systems.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-10-4545R |  |
 |
1.69kg/m | Ix:10.76cm4 Iy:10.76cm4 |
Wx:4.78cm3 Wy:4.78cm3 |
| E&I-10-4545RQ |  |
 |
1.60kg/m | Ix:9.99cm4 Iy:9.99cm4 |
Wx:4.44cm3 Wy:4.44cm3 |
| E&I-10-4545W |  |
 |
2.22kg/m | Ix:15.02cm4 Iy:15.14cm4 |
Wx:6.68cm3 Wy:6.72cm3 |
| E&I-10-4545L |  |
 |
1.51kg/m | Ix:10.85cm4 Iy:10.85cm4 |
Wx:4.82cm3 Wy:4.82cm3 |
| E&I-10-4545 |  |
 |
1.75kg/m | Ix:12.66cm4 Iy:12.66cm4 |
Wx:5.63cm3 Wy:5.63cm3 |
| E&I-10-4560 |  |
 |
2.43kg/m | Ix:17.00cm4 Iy:28.73cm4 |
Wx:7.6cm3 Wy:9.58cm3 |
| E&I-10-4590 |  |
 |
3.65kg/m | Ix:25.20cm4 Iy:107.46cm4 |
Wx:11.2cm3 Wy:23.88cm3 |
| E&I-10-4590W |  |
 |
3.92kg/m | Ix:28.94cm4 Iy:110.96cm4 |
Wx:12.86cm3 Wy:24.66cm3 |

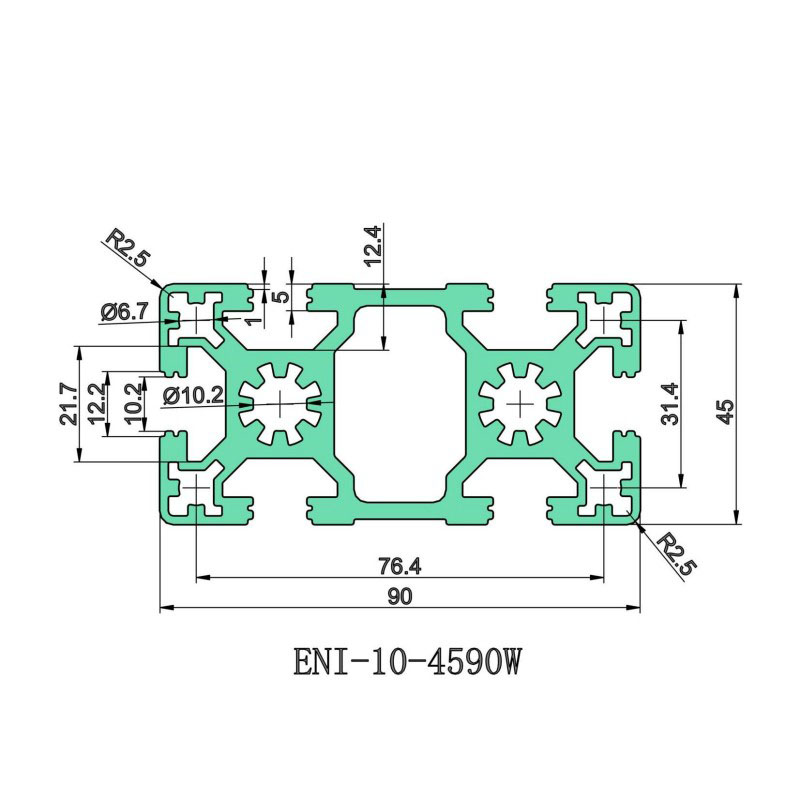

The E&I-10-4590W features a slot width of 10 mm and dimensions of 45mm x 90mm. It comes with an anodized surface treatment which provides high strength, excellent wear resistance, and long-term structural durability.
Thanks to its high load capacity and stability, it is ideal for automated assembly lines, electromechanical brackets, industrial frames, machine supports, guardrails, and heavy-duty structural setups.
Yes, the profile is designed modularly, which means it can be easily cut, drilled, customized, and adjusted with matching T-slot hardware to fit various customized frame designs.
Anodizing provides a protective oxide layer that increases corrosion resistance, prevents scratching, enhances surface durability, and maintains a clean, professional silver appearance.
The E&I-10-4590W has a unit mass of 3.92 kg/m, making it a robust and heavy-duty choice compared to lighter standard profiles, offering higher resistance values (Ix: 28.94 cm4, Iy: 110.96 cm4).
