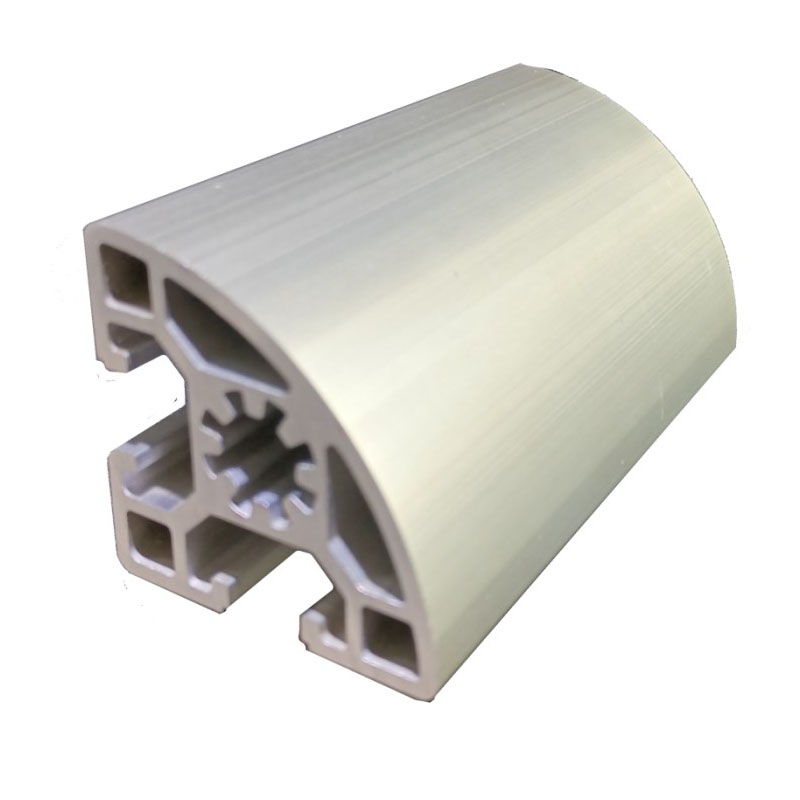

The E&I-10-4545R T-slot aluminum profile has a slot width of 10mm and a specification of 45mm×45mm. It is specially designed with a quarter-round corner, which is suitable for applications that require a soft corner design. The quarter-round design not only enhances the aesthetics of the aluminum profile, but also reduces damage to the corners, providing a safer and more stable connection method. The profile is anodized, with a smooth and corrosion-resistant surface, which can effectively resist external factors such as moisture and oxidation, ensuring stability and durability in long-term use.
Safer & more stable — reduces corner damage
Smooth, corrosion-resistant — moisture & oxidation proof
Flexible custom assembly for diverse industrial needs
Excellent fatigue resistance & good thermal conductivity
This profile has a strong load-bearing capacity and is suitable for use in various automation equipment brackets, mechanical manufacturing frames and precision engineering. Its modular design can be flexibly built according to different needs, which is very suitable for the structural construction of industrial automation accessories and equipment frames. E&I-10-4545R also has good processability, convenient custom processing, and can meet various industrial design needs. Due to its excellent fatigue resistance and good thermal conductivity, it performs stably in the working environment and can withstand high-load industrial applications.
In addition to being used as an automated conveyor line and electromechanical equipment bracket, E&I-10-4545R is also widely used in the fields of architectural aluminum profiles, exhibition aluminum structures, and guardrails. Its flexibility and diversity allow it to provide more abundant design options in engineering, and it is an indispensable basic material in modern industrial construction.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-10-4545R |  |
 |
1.69kg/m | Ix:10.76cm4 Iy:10.76cm4 |
Wx:4.78cm3 Wy:4.78cm3 |
| E&I-10-4545RQ |  |
 |
1.60kg/m | Ix:9.99cm4 Iy:9.99cm4 |
Wx:4.44cm3 Wy:4.44cm3 |
| E&I-10-4545W |  |
 |
2.22kg/m | Ix:15.02cm4 Iy:15.14cm4 |
Wx:6.68cm3 Wy:6.72cm3 |
| E&I-10-4545L |  |
 |
1.51kg/m | Ix:10.85cm4 Iy:10.85cm4 |
Wx:4.82cm3 Wy:4.82cm3 |
| E&I-10-4545 |  |
 |
1.75kg/m | Ix:12.66cm4 Iy:12.66cm4 |
Wx:5.63cm3 Wy:5.63cm3 |
| E&I-10-4560 |  |
 |
2.43kg/m | Ix:17.00cm4 Iy:28.73cm4 |
Wx:7.6cm3 Wy:9.58cm3 |
| E&I-10-4590 |  |
 |
3.65kg/m | Ix:25.20cm4 Iy:107.46cm4 |
Wx:11.2cm3 Wy:23.88cm3 |
| E&I-10-4590W |  |
 |
3.92kg/m | Ix:28.94cm4 Iy:110.96cm4 |
Wx:12.86cm3 Wy:24.66cm3 |

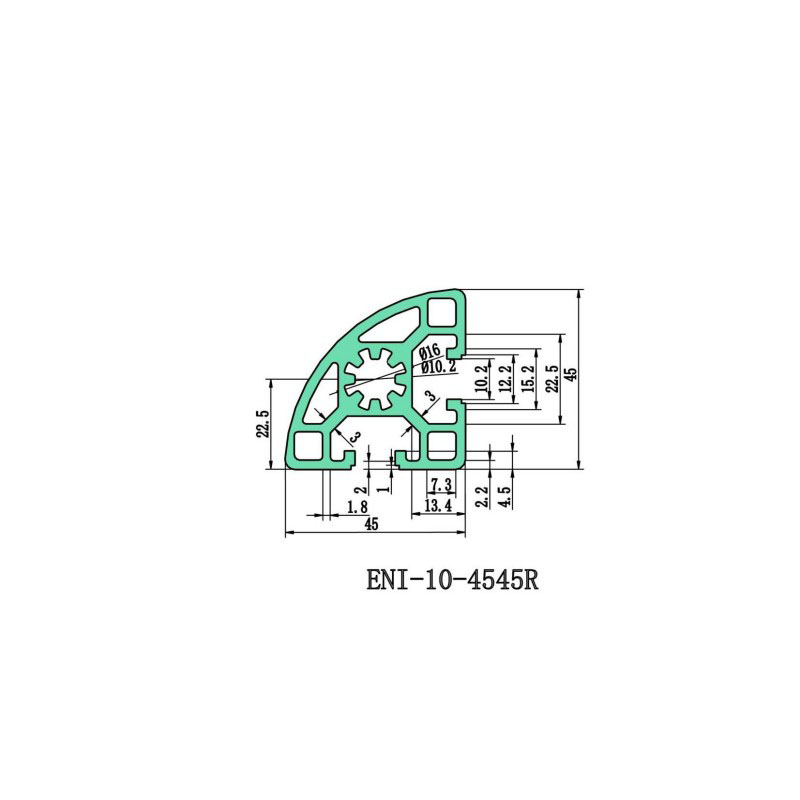

The E&I-10-4545R profile has a standard specification of 45mm×45mm and is designed with a slot width of 10mm.
The quarter-round corner provides a softer, modern aesthetic, minimizes damage to sharp corners, and creates a safer, more stable environment for connection structures.
Yes. The profile is anodized to create a smooth, corrosion-resistant surface that effectively protects against humidity, moisture, and oxidation during long-term operational use.
It is widely used in automated conveyor lines, electromechanical equipment brackets, mechanical manufacturing frames, precision engineering, architectural layouts, and exhibition aluminum structures.
Yes, it features a robust structural design that delivers excellent fatigue resistance and high load-bearing capacity, making it exceptionally reliable in industrial work environments.
Absolutely. The modular design of the E&I-10-4545R enables flexible custom configuration and setup, catering smoothly to custom engineering specifications.
