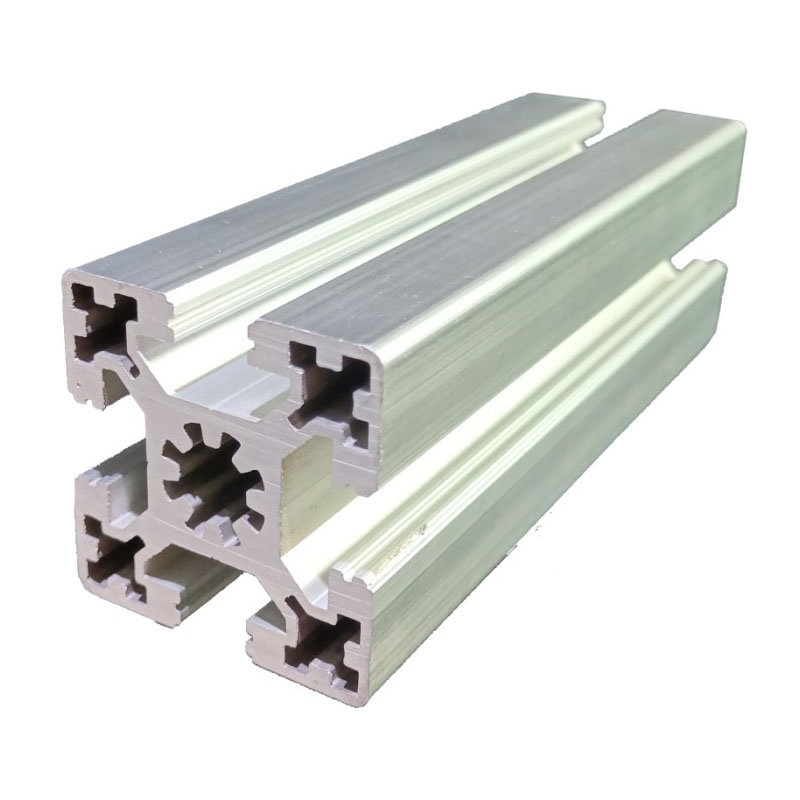

E&I-10-4545W T-slot aluminum profile, slot width 10mm, specification 45mm×45mm, the design focuses on the balance of high strength and lightweight frame, anodized, can effectively resist corrosion and wear, to ensure its long-term stable use in industrial environment. This aluminum profile is particularly suitable for automation equipment brackets, machinery manufacturing frames, precision engineering and industrial support systems, with excellent fatigue resistance and load-bearing capacity, can cope with high-load, high-frequency use environment.
The modular design of the E&I-10-4545W profile makes it highly flexible in assembly and customization. Customers can freely combine, build or modify the equipment frame as needed, greatly improving the efficiency and flexibility of engineering design. In addition to being used as a support for automated conveyor lines and electromechanical equipment, E&I-10-4545W is also commonly used in industrial fencing, exhibition structures and other fields. With its beautiful appearance and stable structural characteristics, it has become the first choice for many industries.
Due to its high precision and high load-bearing capacity, E&I-10-4545W aluminum profile can withstand large loads while maintaining a lightweight frame, making it very suitable for precision engineering and the construction of large industrial equipment. Its good thermal conductivity and fatigue resistance make it perform well under high loads and long-term use, and it is widely used in modern industrial automation and machinery manufacturing.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-10-4545R |  |
 |
1.69kg/m | Ix:10.76cm4 Iy:10.76cm4 |
Wx:4.78cm3 Wy:4.78cm3 |
| E&I-10-4545RQ |  |
 |
1.60kg/m | Ix:9.99cm4 Iy:9.99cm4 |
Wx:4.44cm3 Wy:4.44cm3 |
| E&I-10-4545W |  |
 |
2.22kg/m | Ix:15.02cm4 Iy:15.14cm4 |
Wx:6.68cm3 Wy:6.72cm3 |
| E&I-10-4545L |  |
 |
1.51kg/m | Ix:10.85cm4 Iy:10.85cm4 |
Wx:4.82cm3 Wy:4.82cm3 |
| E&I-10-4545 |  |
 |
1.75kg/m | Ix:12.66cm4 Iy:12.66cm4 |
Wx:5.63cm3 Wy:5.63cm3 |
| E&I-10-4560 |  |
 |
2.43kg/m | Ix:17.00cm4 Iy:28.73cm4 |
Wx:7.6cm3 Wy:9.58cm3 |
| E&I-10-4590 |  |
 |
3.65kg/m | Ix:25.20cm4 Iy:107.46cm4 |
Wx:11.2cm3 Wy:23.88cm3 |
| E&I-10-4590W |  |
 |
3.92kg/m | Ix:28.94cm4 Iy:110.96cm4 |
Wx:12.86cm3 Wy:24.66cm3 |

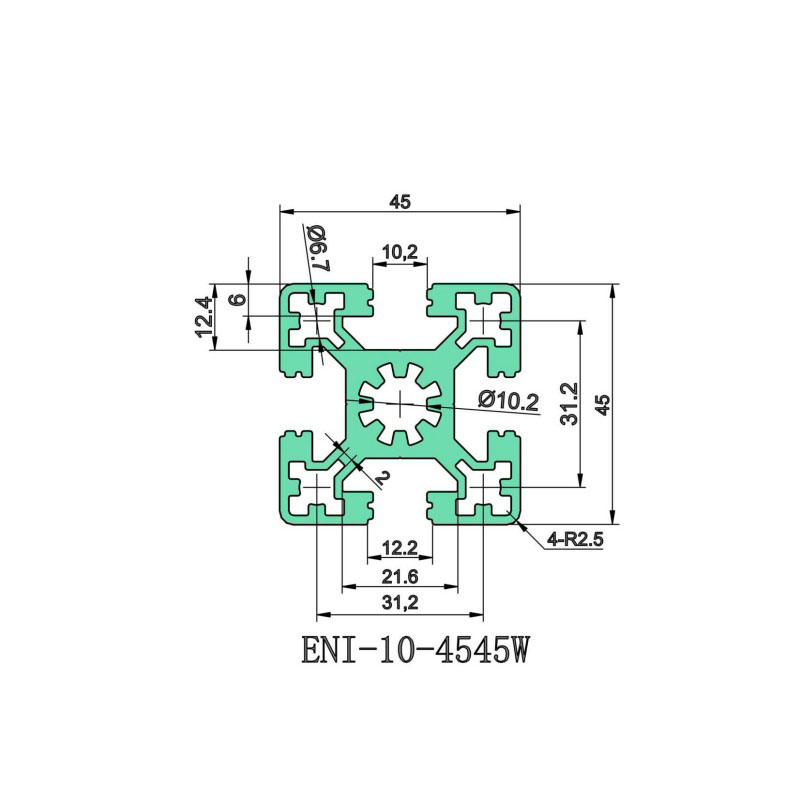

The E&I-10-4545W aluminum profile features a slot width of 10 mm and outer dimensions of 45 mm × 45 mm. It is finished with an anodized surface treatment for enhanced wear and corrosion resistance.
This profile is highly suited for automation equipment brackets, machinery manufacturing frames, precision engineering, industrial support systems, conveyor lines, electromechanical equipment, industrial fencing, and exhibition structures.
The modularity of the E&I-10-4545W allows engineers and builders to freely combine, modify, or scale structural frames easily. This design flexibility saves time and enhances assembly efficiency in customized industrial layouts.
Yes, despite its lightweight construction, it features high structural strength, exceptional fatigue resistance, and load-bearing capacity, making it stable under long-term high-load and high-frequency usage conditions.
The E&I-10-4545W model has a unit mass of 2.22 kg/m, which provides an optimized balance between lightweight frame dynamics and structural integrity.
