In modern industrial manufacturing, high-capacity, automated logistics lines form the backbone of factory intelligence. The multiple speed chain conveyor system—primarily utilizing 2.5x times chain and 3.0x times chain configurations—has emerged as the premier standard for accumulating conveyor assemblies. These systems allow transport pallets to move at double or triple the speed of the underlying drive chain, maximizing operational output while drastically reducing cycle times.
Global demand in industries such as automotive powertrains, lithium-ion battery packing, and advanced electronics relies on modular structural components that handle high static loads without mechanical fatigue. By coupling precision aluminum profile structures with these dynamic chain drives, modern factories minimize energy usage, prevent vibration damage to delicate electronic parts, and implement quick-change structural configurations.

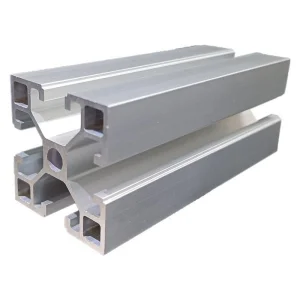

The "EI" series, including standard structures like E&I-10-5050B and E&I-8-4040C, serves as the heavy-duty framing mechanism that encloses, guides, and supports these speed chains across globally distributed mega-factories.
Understanding the manufacturing efficiencies, strict processing criteria, and supply chain speed that Chengdu E&I brings to international logistics setups.
By leveraging Chinese manufacturing hubs equipped with multi-ton hydraulic extrusion presses and computer-controlled cooling zones, profiles are guaranteed uniform mechanical properties. Heat treatments such as T5 and T6 hardening ensure tensile strengths exceeding 180 MPa, critical for preventing structural sagging in spans over 4 meters.
Anodizing thickness is meticulously maintained between 10 to 15 microns. This forms an impenetrable layer of aluminum oxide (Al₂O₃), making profiles scratch-resistant, electrically isolating, and impervious to chemical washdowns in cleanrooms or battery assembly zones.
From metallurgical research in partnership with national light-alloy research centers to automated structural machining, packaging, and shipping, our production pipeline minimizes administrative friction. This leads to shorter lead times, lower per-unit cost structure, and high batch-to-batch repeatability.
Chengdu E&I Aluminum Industry Co., Ltd. (E&I) operates on a business philosophy prioritizing "people-oriented, quality value, technological innovation, and win-win cooperation." We are dedicated to the research, development, and manufacturing of high-difficulty, high-precision, and highly demanding aluminum alloy products.
Collaborating closely with the National Institute of Nonferrous Metals, we maintain a professional team within China's light alloy industry. This structure enables us to provide comprehensive solutions encompassing profiles, castings, and forgings. Our quality control parameters and technical support convert material costs into long-term commercial value, making E&I a reliable strategic partner for international system builders. Our client base includes automotive majors and global aviation corporations.
Operating out of our advanced fabrication facilities, we offer complete design, extrusion, anodizing, powder coating, and installation services. From protective mechanical fences and cleanroom frameworks to solar support systems and fully integrated multiple-speed chain conveyor platforms, we supply products built to high-precision tolerance standards.
Real-world structural configurations where precision T-slot and speed-chain aluminum structures achieve long-term structural integrity.
Automobile assembly requires clean, high-load transport paths for lithium-ion battery modules. Using 2.5x times chain guide rails like the ENI-8-3030M or EI-10-5050B provides flat, vibration-free tracking, preventing internal cell components from experiencing micro-cracks during transit.
In dust-free electronic packaging areas, structural wear must be minimized. The anodized surfaces of our lightweight structures (e.g., E&I-8-5050L) prevent carbon particulates or paint chips from shedding onto sensitive components, ensuring class 100/1000 cleanroom compliance.
For heavy-duty Cartesian robots or material handling structures, profiles like E&I-8-80160 provide high moment of inertia and bending resistance. This allows design engineers to build structural frameworks without resorting to heavy structural steel, reducing logistics and installation overheads.
A detailed breakdown of the values that keep Chengdu E&I at the forefront of the global industrial aluminum profile market.
We treat our engineering and production personnel as our most valuable asset, ensuring continuous training, a safe workspace, and competitive salaries that drive long-term commitment and craftsmanship.
Every profile design, extrusion batch, and anodized finish is calibrated to provide exceptional value, helping our partners achieve high productivity with minimal assembly downtime.
Continuous R&D spending keeps us ahead in alloy chemistry, profile optimization, and accessory design. Innovation remains our main tool to provide high-value structural components.
We work in close cooperation with customers, suppliers, and distributors to build sustainable businesses, growing together through a resilient and predictable supply chain.
To build product competitiveness, innovation ability, and technical strength that ranks among the top three in China's industrial aluminum sector. We provide strategic engineering support, empowering shareholders, employees, global procurement officers, and engineering teams to achieve sustainable, long-term development.
A guide for purchasing departments to evaluate mechanical stability, tolerance metrics, and material compliance before purchasing extrusion frameworks.
For high-speed accumulation chains, guide rail distortion must be kept below 0.3mm per meter. Any deviation can lead to chain friction, accelerated wear of polyoxymethylene (POM) rollers, and motor overheating. E&I profiles undergo multiple straightening processes during stretching to meet high precision standards.
Modular profiles rely on T-bolts, hammer nuts, and inner bracket connectors. A secure joint is essential for lines subject to start-stop vibrations. E&I's components feature precise thread matches and anti-loosening designs, maintaining structural integrity under dynamic conditions.
Global procurement teams must document supply chain emissions. Our smelting and extrusion facilities prioritize energy-efficient processes and clean thermal energy to reduce the carbon footprint of our profiles, supporting partners' environmental initiatives.
| Alloy Grade | Tensile Strength | Yield Strength | Hardness |
|---|---|---|---|
| 6063-T5 | ≥ 160 MPa | ≥ 110 MPa | ≥ 8 HW |
| 6063-T6 | ≥ 205 MPa | ≥ 180 MPa | ≥ 12 HW |
| 6061-T6 | ≥ 265 MPa | ≥ 245 MPa | ≥ 15 HW |
*Note: Technical values are verified by third-party testing labs. Custom profile tolerances can be configured for specific engineering orders.
Technical answers to key questions about modern aluminum speed chain guide rails, T-slot framing systems, and procurement logistics.
The speed ratio designates the difference in travel speed between the chain and the conveyor carrier pallet. A 2.5x system moves the carrier at 2.5 times the velocity of the chain, while a 3.0x system moves it at 3 times that velocity. This is accomplished by leveraging rollers of varying diameters. Guide rail profiles must be engineered with precise longitudinal channels to match these specific roller sizes and support dynamic loads without excessive friction.
During accumulation, carrier pallets stop while the chain continues to slide beneath them. This constant sliding causes abrasive wear. A hard anodized layer (usually > 12 microns) provides a surface hardness comparable to hardened steel, preventing aluminum erosion and reducing mechanical friction coefficients over years of continuous operation.
Yes. Our industrial profiles are designed and extruded according to international modular standards. This ensures compatibility with standard T-slots (such as 6mm, 8mm, and 10mm slot widths), permitting direct integration into systems using profiles from other manufacturers.
We utilize precision stretching machinery that straightens the profile directly after the cooling stage. Additionally, each batch undergoes strict dial-indicator inspections along its length to ensure twist and flatness variances fall within national high-precision standard ranges (under 0.3mm per meter deviation).
Interested purchasing managers or layout engineers can submit standard CAD files (.dwg, .dxf, .step). Our design department reviews the profile geometry, suggests modifications for improved extrusion flow, develops the die tooling, and provides initial prototype samples for testing before starting volume production.
