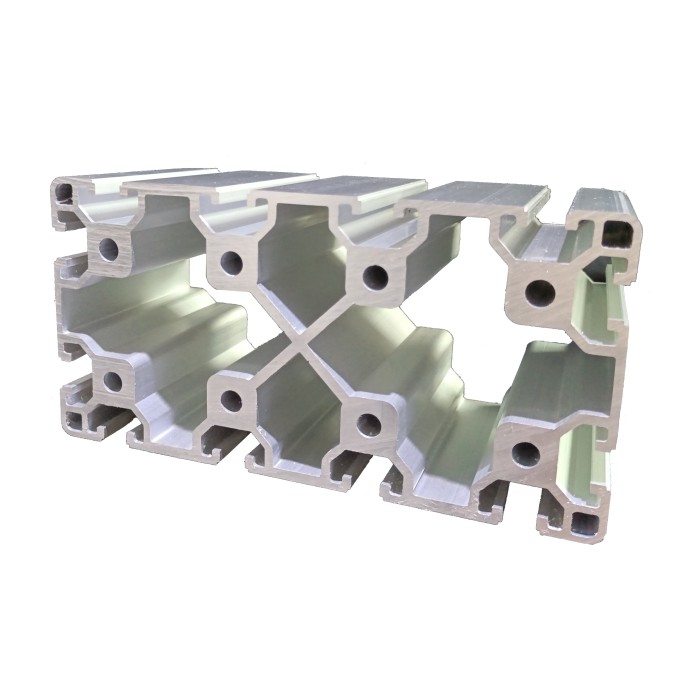

E&I-8-80160 is an extra-long T-slot aluminum profile with a slot width of 8mm and a specification of 80mm×160mm, designed for heavy equipment support and industrial automation frames. Made of high-strength aluminum alloy, it has good load-bearing capacity and durability, and the surface anodizing treatment improves its corrosion resistance, enabling it to be used in harsh environments.
The modular structure design of E&I-8-80160 makes its installation and adjustment quick and easy, and is suitable for large-scale equipment brackets, heavy industrial frames and workshop isolation. Its excellent fatigue resistance and stability ensure that it maintains high performance in long-term work and is not easy to deform.
Modular structure enables fast assembly and easy adjustment for large-scale industrial setups.
High-strength aluminum alloy construction provides superior load-bearing and long-term durability.
Anodized surface treatment ensures excellent corrosion resistance for use in harsh environments.
Maintains high performance in long-term operations without deformation under sustained stress.
This profile is not only suitable for automated assembly lines and industrial equipment frames, but also can be used in high-strength mechanical support scenarios, providing safe and reliable support for industrial production, with high cost performance and flexibility.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-8840R |  |
 |
3.77kg/m | Ix:84.76cm4 Iy:85.09cm4 |
Wx:21.19cm3 Wy:21.27cm3 |
| E&I-8-8080K |  |
 |
3.66kg/m | Ix:88.04cm4 Iy:88.04cm4 |
Wx:22.01cm3 Wy:22.01cm3 |

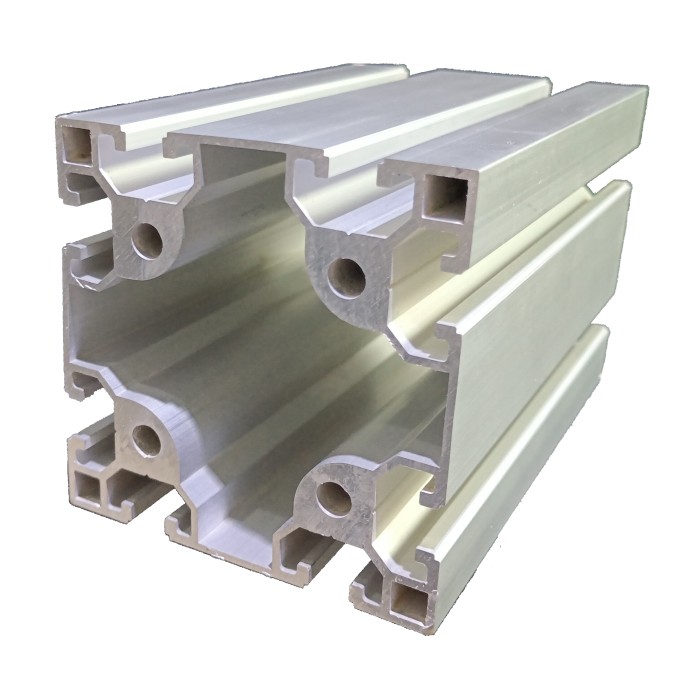

| E&I-8-8080T |  |
 |
3.99kg/m | Ix:104.32cm4 Iy:104.32cm4 |
Wx:26.08cm3 Wy:26.08cm3 |
| E&I-8-8080 |  |
 |
4.82kg/m | Ix:122.77cm4 Iy:118.8cm4 |
Wx:30.69cm3 Wy:29.7cm3 |
| E&I-8-8080W |  |
 |
5.66kg/m | Ix:147.13cm4 Iy:144.33cm4 |
Wx:36.78cm3 Wy:36.08cm3 |
| E&I-8-8080G |  |
 |
5.68kg/m | Ix:146.63cm4 Iy:154.96cm4 |
Wx:36.66cm3 Wy:38.74cm3 |
| E&I-10-8080H |  |
 |
4.25kg/m | Ix:109.92cm4 Iy:109.92cm4 |
Wx:27.48cm3 Wy:27.48cm3 |
| E&I-8-80120 |  |
 |
6.89kg/m | Ix:204.89cm4 Iy:443.57cm4 |
Wx:51.22cm3 Wy:73.93cm3 |

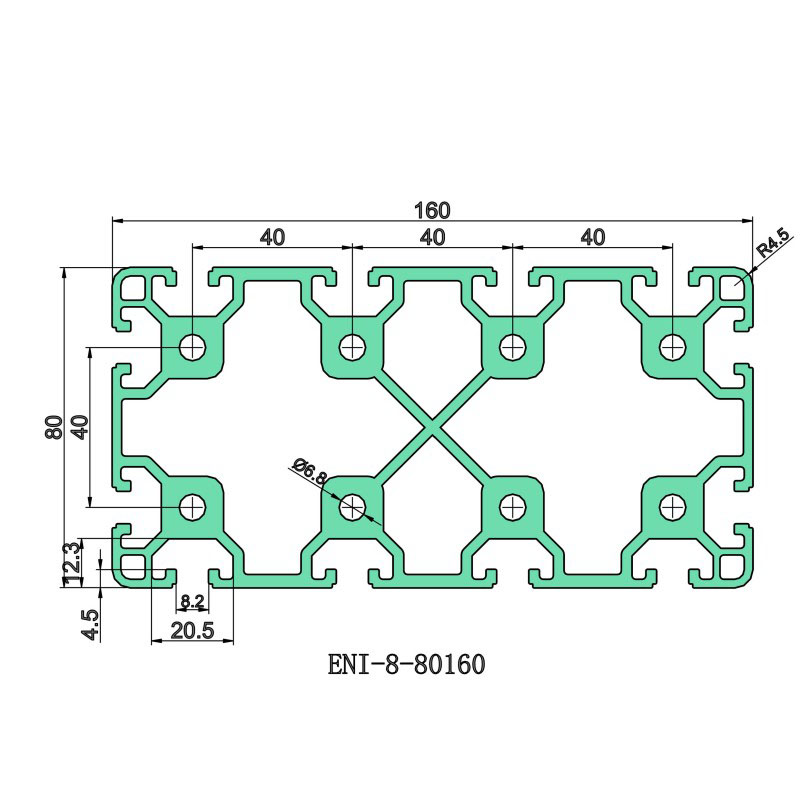

| E&I-8-80160 | |
 |
9.09kg/m | Ix:238.24cm4 Iy:809.89cm4 |
Wx:59.56cm3 Wy:101.24cm3 |
| E&I-10-80160H |  |
 |
9.03kg/m | Ix:263.59cm4 Iy:918.18cm4 |
Wx:65.79cm3 Wy:114.77cm3 |
It is designed for heavy equipment support, industrial automation frames, large-scale assembly line structures, and workshop isolation partitions where high load capacity and structural stability are required.
An 8mm slot width means the profile is compatible with standard M8 T-nuts, bolts, and connecting fasteners, allowing for simple integration with existing T-slot components.
Anodization provides a durable protective layer that increases corrosion resistance, prevents oxidization, and improves scratch resistance, ensuring long service life even in harsh environments.
Yes. The high-strength aluminum alloy formulation coupled with the 80x160 cross-section offers high moments of inertia (Ix: 238.24 cm⁴, Iy: 809.89 cm⁴), rendering it highly resistant to bending and fatigue.
The modular design eliminates the need for welding. Frames can be easily assembled, disassembled, or reconfigured with standard joint connectors, saving labor time and reducing setup costs.
