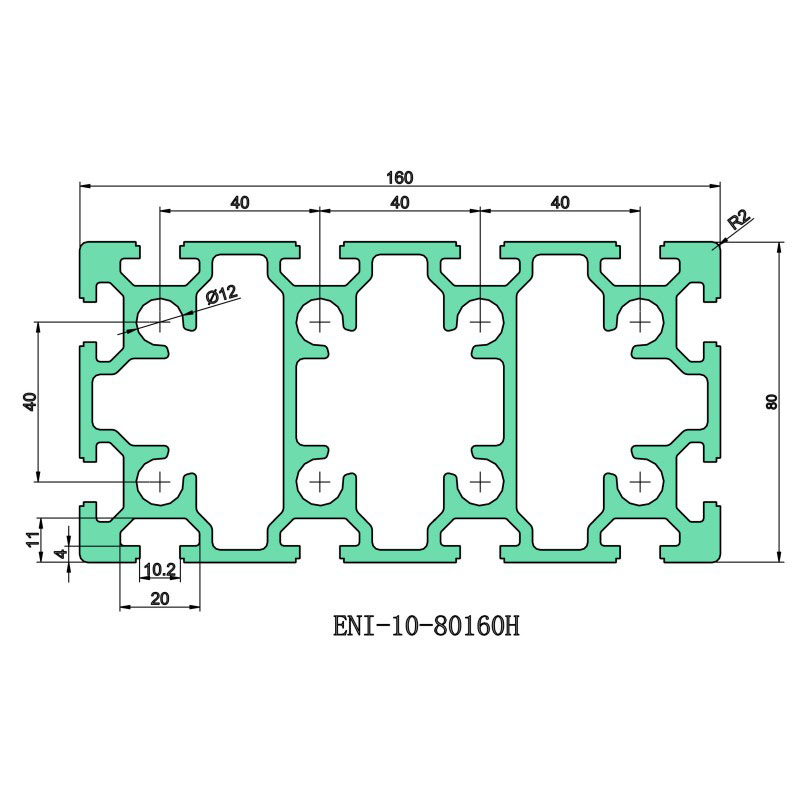

E&I-10-80160H is a heavy-duty T-slot aluminum profile with a slot width of 10mm and a specification of 80mm×160mm. It is particularly suitable for industrial equipment frames and mechanical brackets that require high load-bearing capacity and structural stability. The aluminum profile is made of high-quality aluminum alloy, and the surface is anodized. It has excellent corrosion resistance and wear resistance, and can meet the support needs of heavy-duty mechanical equipment frames and automated assembly lines.
The modular design of E&I-10-80160H is easy to install and adjust, and has high structural strength, making it suitable for industrial environments that require long-term stable operation. This type of aluminum profile performs well in industrial automation, workshop isolation, and mechanical support frames, and can effectively improve the stability of equipment and extend its service life. Its flexible design allows the product to be quickly assembled and adjusted according to project requirements, providing industrial users with a cost-effective support structure, and is ideal for industrial automation and heavy machinery equipment frames.
| Parameter | Details |
|---|---|
| Model | E&I-10-80160H |
| Slot Width | 10mm |
| Profile Size | 80mm × 160mm |
| Material | High-Quality Aluminum Alloy |
| Surface Treatment | Anodized |
| Profile Type | Heavy-Duty T-Slot |
| Application | Industrial Automation, Workshop Isolation, Mechanical Support Frames |
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-8840R |  |
 |
3.77kg/m | Ix:84.76cm4 Iy:85.09cm4 |
Wx:21.19cm3 Wy:21.27cm3 |
| E&I-8-8080K |  |
 |
3.66kg/m | Ix:88.04cm4 Iy:88.04cm4 |
Wx:22.01cm3 Wy:22.01cm3 |
| E&I-8-8080T |  |
 |
3.99kg/m | Ix:104.32cm4 Iy:104.32cm4 |
Wx:26.08cm3 Wy:26.08cm3 |
| E&I-8-8080 |  |
 |
4.82kg/m | Ix:122.77cm4 Iy:118.8cm4 |
Wx:30.69cm3 Wy:29.7cm3 |
| E&I-8-8080W |  |
 |
5.66kg/m | Ix:147.13cm4 Iy:144.33cm4 |
Wx:36.78cm3 Wy:36.08cm3 |
| E&I-8-8080G |  |
 |
5.68kg/m | Ix:146.63cm4 Iy:154.96cm4 |
Wx:36.66cm3 Wy:38.74cm3 |
| E&I-10-8080H |  |
 |
4.25kg/m | Ix:109.92cm4 Iy:109.92cm4 |
Wx:27.48cm3 Wy:27.48cm3 |
| E&I-8-80120 |  |
 |
6.89kg/m | Ix:204.89cm4 Iy:443.57cm4 |
Wx:51.22cm3 Wy:73.93cm3 |
| E&I-8-80160 |  |
 |
9.09kg/m | Ix:238.24cm4 Iy:809.89cm4 |
Wx:59.56cm3 Wy:101.24cm3 |
| E&I-10-80160H | |
 |
9.03kg/m | Ix:263.59cm4 Iy:918.18cm4 |
Wx:65.79cm3 Wy:114.77cm3 |
It is ideal for heavy-duty industrial equipment frames, mechanical brackets, automated assembly lines, and workshop isolation systems that require maximum load-bearing capability and structural stability.
The profile is manufactured using high-quality aluminum alloy with an anodized surface treatment, which provides excellent corrosion resistance, wear resistance, and long-term durability.
The modular design enables rapid assembly, quick adjustments, and flexible structural reconfigurations directly on-site, significantly reducing installation time and overall project labor costs.
The 80160 series offers significantly higher moments of inertia (e.g., Iy: 918.18 cm4 for E&I-10-80160H) compared to the 8080 series, making it much more suitable for heavy-duty spans and massive machinery support structures.
This profile features a 10mm slot width, meaning it is compatible with standard M10 T-nuts, bolts, and connecting components engineered for 10mm slot aluminum profile systems.
