| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|

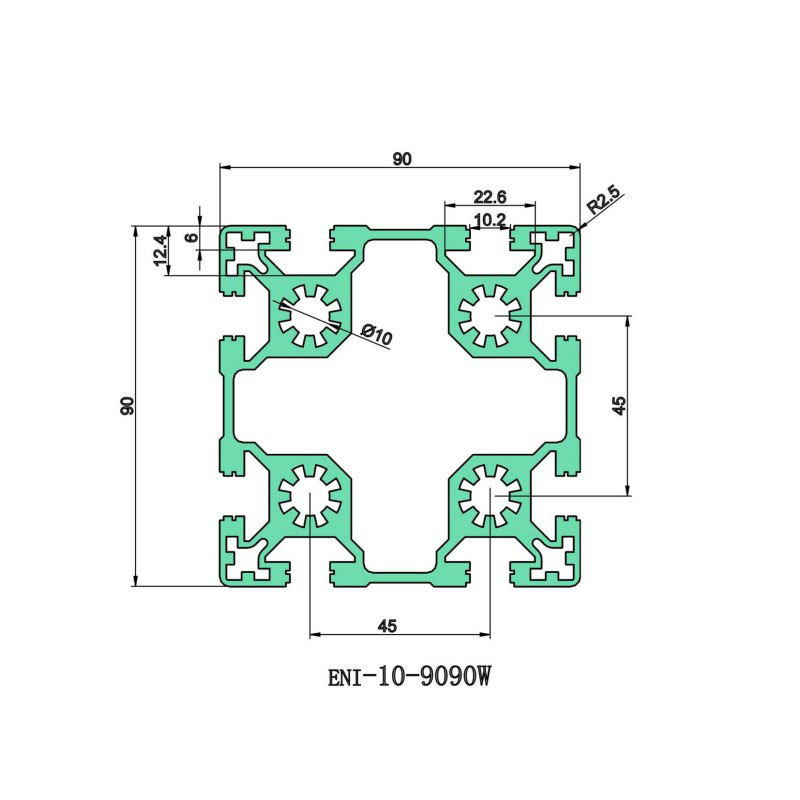

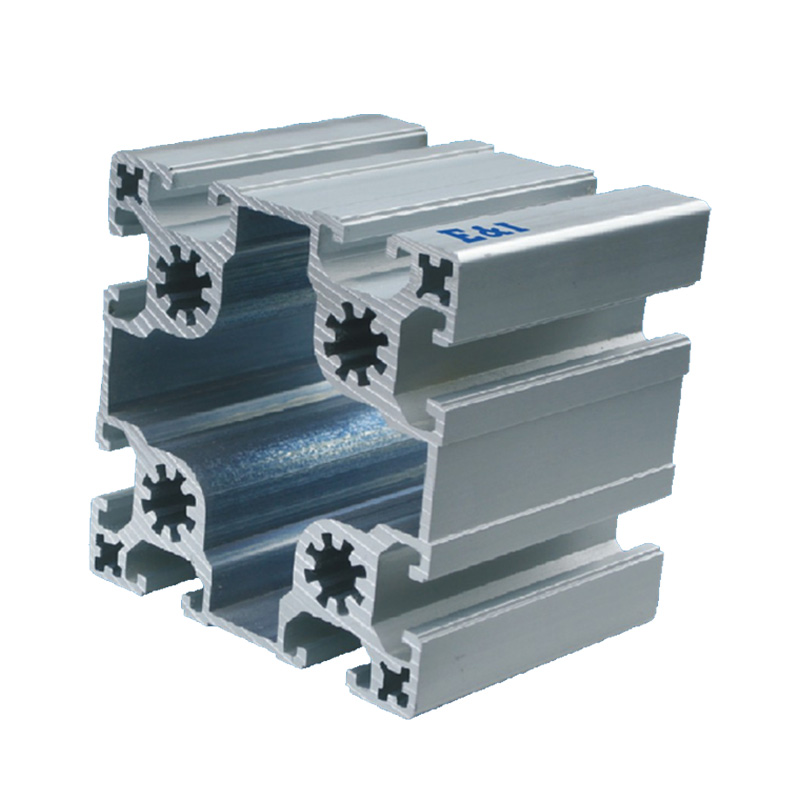

| E&I-10-9090W |
|
|
6.19kg/m | Ix:201.66cm4 Iy:201.66cm4 |
Wx:44.81cm3 Wy:44.81cm3 |

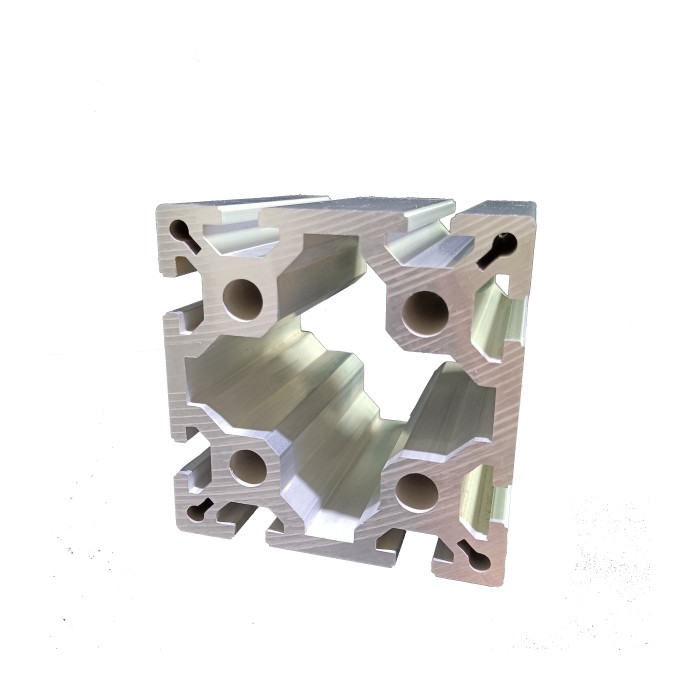

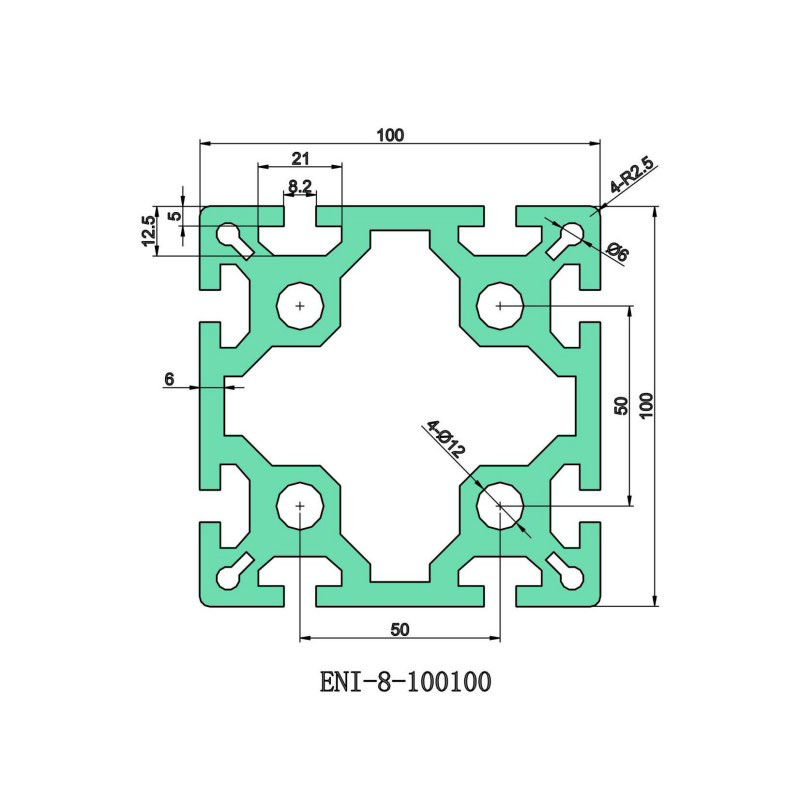

| E&I-8-100100 |
|
|
10.68kg/m | Ix:446.48cm4 Iy:446.48cm4 |
Wx:89.29cm3 Wy:89.29cm3 |

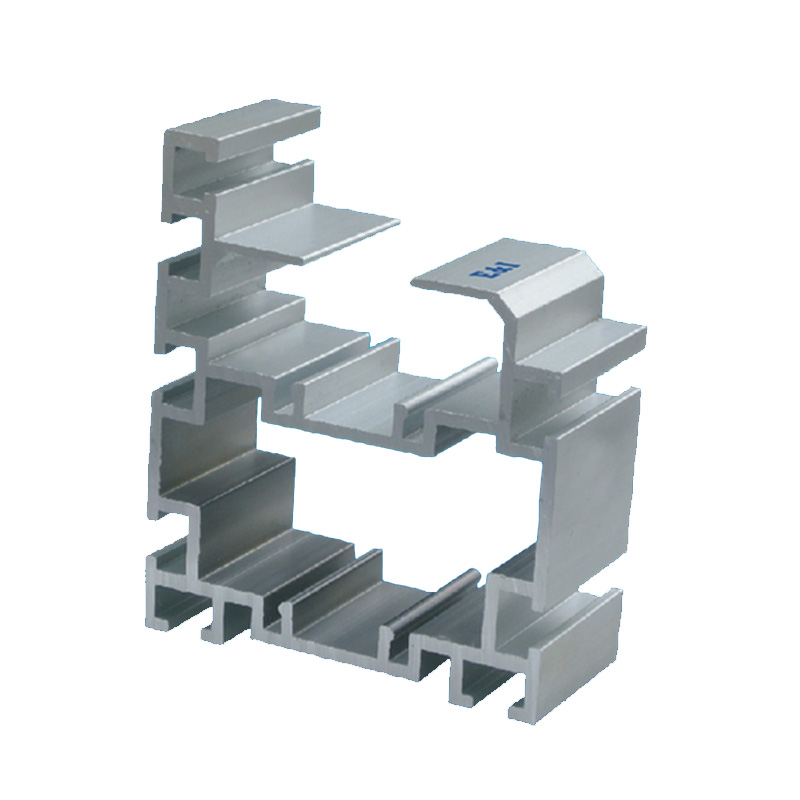

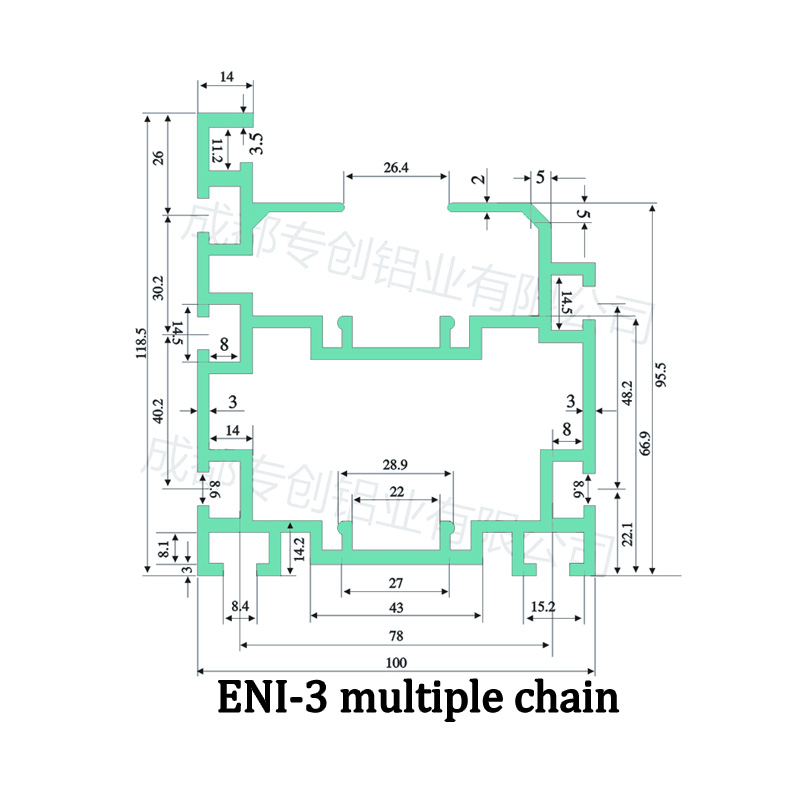

The 3x speed chain assembly line profile is the core carrier of industrial automation production, especially suitable for assembly and material transportation. With its efficient speed-increasing characteristics and stable structure, it has become the first choice for production lines in electronics, automobiles, home appliances and other industries.
It uses a special extruded aluminum alloy profile as the basic frame, and is matched with a 3x speed chain to realize the speed-increasing operation of the tooling plate — the chain is driven at a constant speed, and the moving speed of the tooling plate can be up to 3 times that of the chain, which greatly improves the conveying efficiency. At the same time, the stopper is used to accurately control the station stay to meet the needs of assembly, inspection and other operations, and can also flexibly complete complex actions such as accumulation, transfer, and line switching.
This profile can be flexibly matched with other aluminum profiles. Through standardized interfaces, the assembly line table and guide rails can be seamlessly connected, and a production system with a stable structure and diverse layouts can be built without complicated customization. Whether it is straight-line conveying, turning connection or multi-layer layout, it can be quickly adapted, which not only ensures the aesthetics and practicality of the production line, but also reduces installation and commissioning costs, providing strong support for enterprises to build efficient and flexible production systems.
It is a specialized extruded aluminum alloy profile frame engineered to work with a 3x speed chain. It serves as the foundation for automated production and material transport systems.
While the conveyor chain runs at a steady, continuous speed, the design allows the tooling plate on top to travel at up to 3 times the actual speed of the chain, greatly speeding up transport times.
By utilizing stoppers and control accessories, it seamlessly manages station stops, accumulation, line switching, transfers, and assembly or inspection tasks.
Yes. Thanks to their standardized interfaces, they can be easily integrated with a wide range of standard aluminum profiles, tables, and guide rails without complex customization.
The modular nature of the profiles allows you to configure layouts in straight runs, corner turns, or multi-level assembly setups to suit your workspace.
It is widely deployed in automated production and assembly lines for electronics manufacturing, automotive parts assembly, and home appliance industries.
