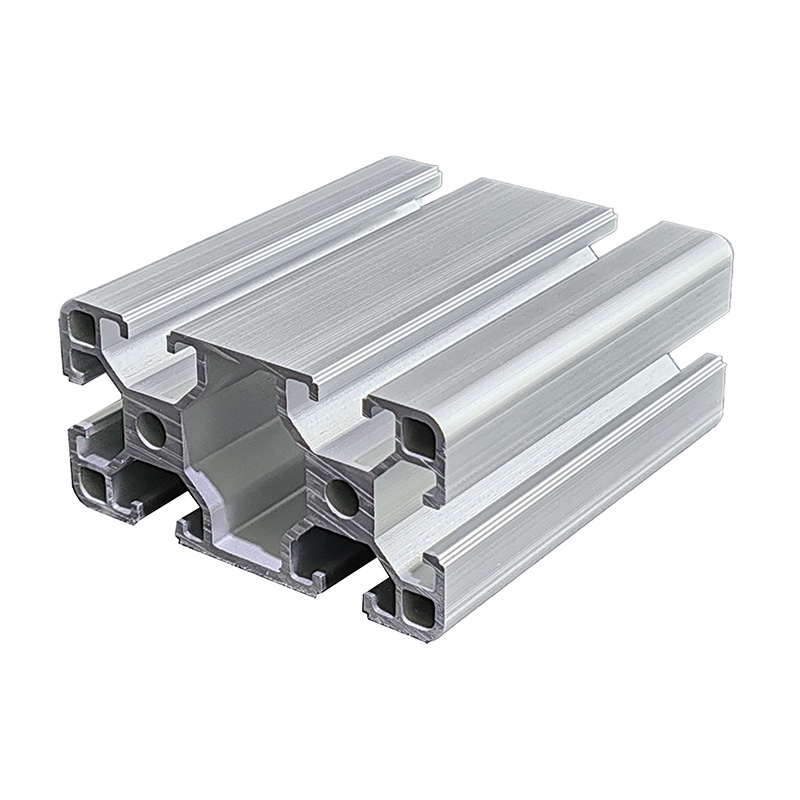

In factory production scenarios, large-scale mechanical equipment is the core to ensure production capacity and precision. However, it is not only expensive to build, but also poses high safety risks during operation. Tailoring protective frames for large equipment is a key solution that takes into account both equipment protection and personnel safety. ENI-8-4080U aluminum profiles are an excellent choice for building such frames. The core of the frame design is to adapt to the actual size of the equipment. The structure needs to be accurately planned according to the length, width and height of the equipment. Sufficient space must be reserved for equipment operation to avoid the frame interfering with equipment movements, and maintenance channels and operating areas for technicians must be specially designated to ensure smooth daily maintenance. Different from traditional welded steel frames, the modular nature of ENI-8-4080U aluminum profiles makes customized assembly more efficient and more flexible in adapting to equipment of different specifications.

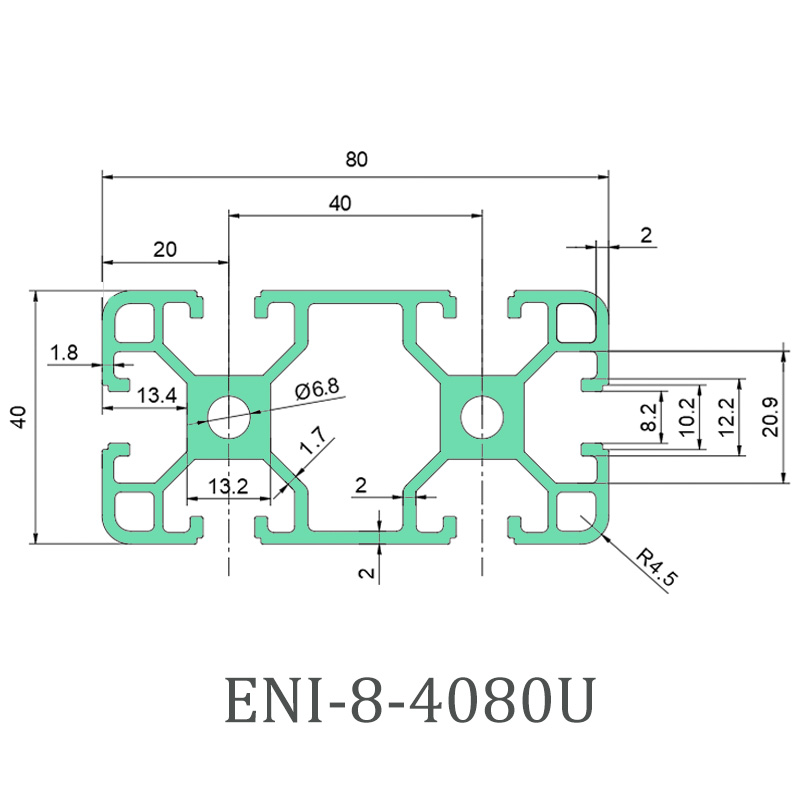

In terms of structural detail design, the U-shaped groove characteristics of ENI-8-4080U aluminum profiles just meet the protection needs: large equipment moves less frequently, and the hoof feet can be directly installed at the bottom of the frame for leveling and fixation, without the need for additional concrete embedding; the profile connections are reinforced with built-in connectors with corner codes and hexagonal bolts, which not only ensures structural stability but also makes the appearance more beautiful. Simple and smooth; the thickness of the plexiglass can be directly customized according to the width of the slot. Once it is clicked into the slot, it can be firmly fixed and will not loosen after long-term use. Insulation strips are installed in the empty spaces where glass is not installed, which can effectively prevent dust and debris from entering the equipment area; end caps are installed on the profile cutouts to beautify the appearance and avoid sharp cuts scratching workers. The details build a strong safety line.
From the perspective of cost performance and long-term use, the aluminum profile frame has significant advantages: the surface of the anodized profile forms a dense oxide film, which is resistant to wear and corrosion, and will not rust even if it is contaminated with mechanical oil. It only needs simple cleaning in the later period, and the maintenance cost is much lower than that of traditional steel frames; modular assembly does not require complex processes such as welding, and the transformation cost is low. If the subsequent equipment is adjusted or the specifications are updated, the frame can also be disassembled, reassembled and reused. The overall cost advantage is very prominent, making it a cost-effective choice for the protection of large equipment in factories.
| ENI-8-4080U Aluminum Profile | Traditional Steel Frame |
|---|---|
| Anodized surface — rust & corrosion resistant | Prone to rust, especially with oil exposure |
| Modular assembly — no welding required | Requires welding; complex & costly process |
| Disassemble, reassemble & reuse when needed | Difficult to modify; high reconstruction cost |
| Simple cleaning only — low maintenance cost | Regular anti-rust treatment & higher upkeep |
