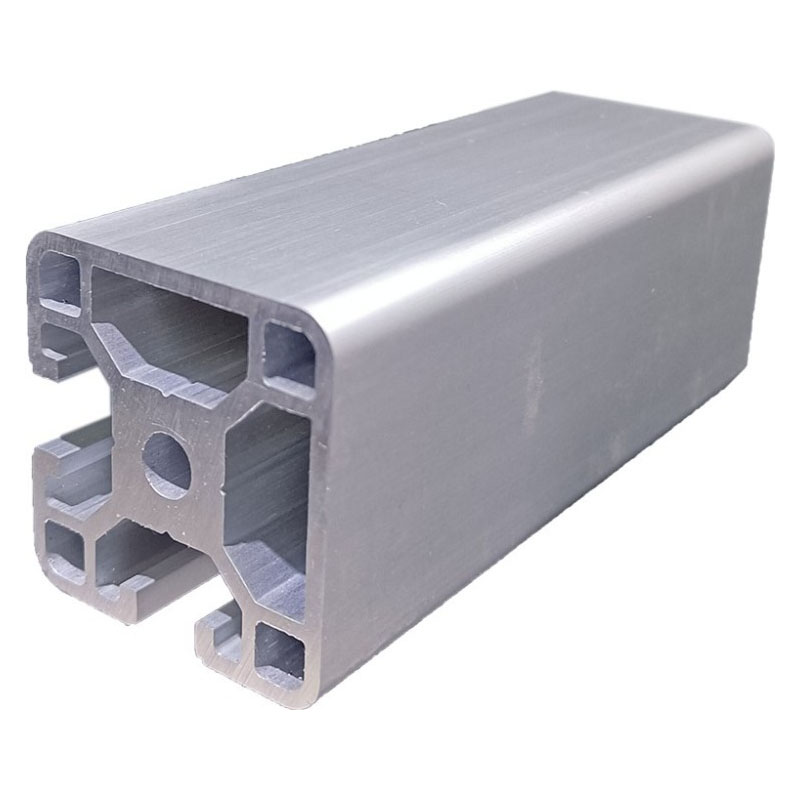

E&I-8-4040E is an industrial aluminum profile with elegant design and versatile functions. The specifications are 40mm*40mm. The covers on both sides make it more beautiful, while increasing strength and safety. This model adopts anodized surface treatment, which ensures its excellent corrosion resistance and keeps it in good condition both indoors and outdoors. The structural design of E&I-8-4040E not only meets the high standards of industrial use, but is also suitable as an aluminum structure for exhibitions. Its simple appearance makes it more eye-catching in the display environment.
This product can be used as a conveyor line skeleton for automation equipment in industrial applications. With its sturdy and durable design, it provides reliable support for automation operations. Its lightweight characteristics greatly reduce the overall installation cost, and can easily achieve efficient disassembly and structural adjustment. In addition, the anodized treatment of E&I-8-4040E makes it easy to clean, especially suitable for clean rooms or dust-free environments, meeting the industry requirements of high cleanliness.
The modular and diverse design of E&I-8-4040E makes it extremely flexible. By using the corresponding accessories, multi-angle and personalized structural configuration can be achieved to meet the multiple uses of exhibition, industrial and clean requirements. At the same time, this model has high recyclability and meets environmental protection requirements. As an industrial aluminum profile with stable structure and excellent appearance, E&I-8-4040E has a wide range of applicability in many fields and is an ideal choice for various environments such as industrial automation and display construction.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-4040 |  |
 |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040F |  |
 |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 | Wx:5.62cm3 Wy:5.62cm3 |
| E&I-8-4040GG |  |
 |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 | Wx:3.87cm3 Wy:3.87cm3 |
| E&I-8-4040T |  |
 |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 | Wx:2.55cm3 Wy:2.55cm3 |
| E&I-8-4040LC |  |
 |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 | Wx:3.18cm3 Wy:3.18cm3 |
| E&I-8-4040W |  |
 |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 | Wx:3.91cm3 Wy:3.91cm3 |
| E&I-8-4040B |  |
 |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040LD |  |
 |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 | Wx:3.11cm3 Wy:3.11cm3 |
| E&I-8-4040C |  |
 |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 | Wx:3.66cm3 Wy:3.66cm3 |
| E&I-8-4040D |  |
 |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 | Wx:4.99cm3 Wy:4.99cm3 |
| E&I-8-4040E |  |
 |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 | Wx:4.48cm3 Wy:4.48cm3 |
| E&I-8-4040EE |  |
 |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 | Wx:4.32cm3 Wy:4.48cm3 |
| E&I-10-4040H |  |
 |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040R |  |
 |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 | Wx:3.55cm3 Wy:3.55cm3 |
| E&I-10-4060H |  |
 |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 | Wx:6.67cm3 Wy:9.23cm3 |
| E&I-8-4080GA |  |
 |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 | Wx:7.21cm3 Wy:13.65cm3 |
| E&I-8-4080C |  |
 |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 | Wx:6.86cm3 Wy:13.08cm3 |
| E&I-8-4080M |  |
 |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 | Wx:7.00cm3 Wy:13.23cm3 |
| E&I-8-4080F |  |
 |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 | Wx:9.83cm3 Wy:19.83cm3 |
| E&I-10-4080H |  |
 |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 | Wx:8.07cm3 Wy:15.43cm3 |
| E&I-8-4080 |  |
 |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 | Wx:8.24cm3 Wy:16.48cm3 |
| E&I-8-4080I |  |
 |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 | Wx:9.56cm3 Wy:18.33cm3 |
| E&I-8-40120 |  |
 |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 | Wx:12.76cm3 Wy:36.63cm3 |
| E&I-8-40120E |  |
 |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 | Wx:12.98cm3 Wy:39.71cm3 |
| E&I-8-40160 |  |
 |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 | Wx:19.92cm3 Wy:69.99cm3 |
| E&I-8-40160B |  |
 |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 | Wx:15.96cm3 Wy:57.22cm3 |

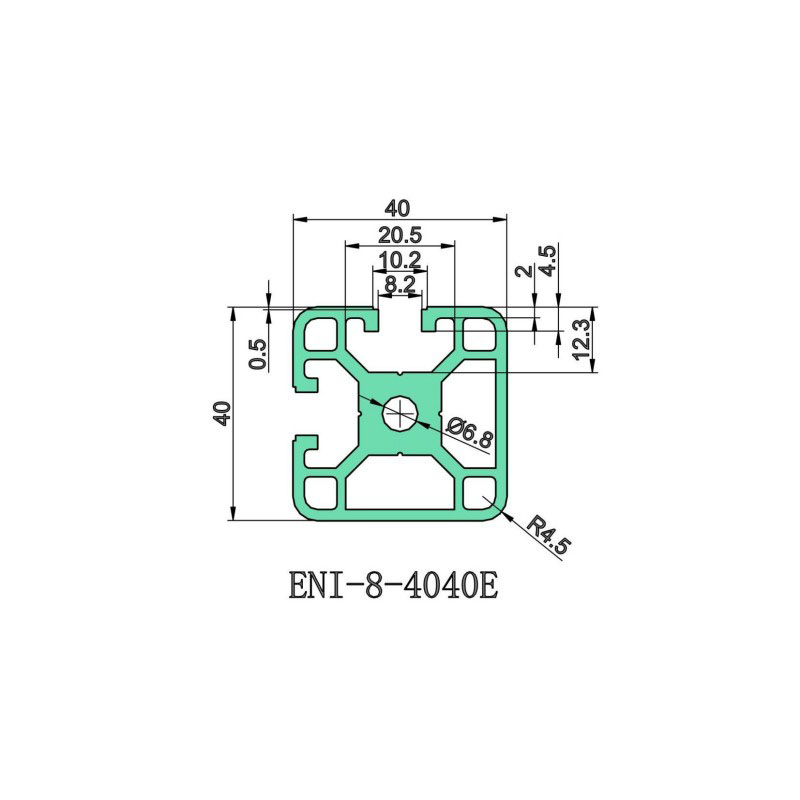

The E&I-8-4040E is an industrial-grade profile with cross-sectional measurements of 40mm * 40mm, featuring end covers on both sides to optimize strength, safety, and visual aesthetics.
The anodized finish provides outstanding corrosion resistance, ensuring durability and performance in both demanding indoor industrial setups and harsh outdoor display environments.
Yes, its smooth anodized coating makes it easy to wipe down and maintain, making it highly suitable for clean rooms, laboratories, and dust-free industrial workspaces.
Absolutely. The modular architecture allows users to configure personalized, multi-angle structures quickly using standardized connection accessories, simplifying assembly and modifications.
The E&I-8-4040E features high recyclability and complies with modern environmental protection guidelines, supporting sustainable engineering and green building initiatives.
