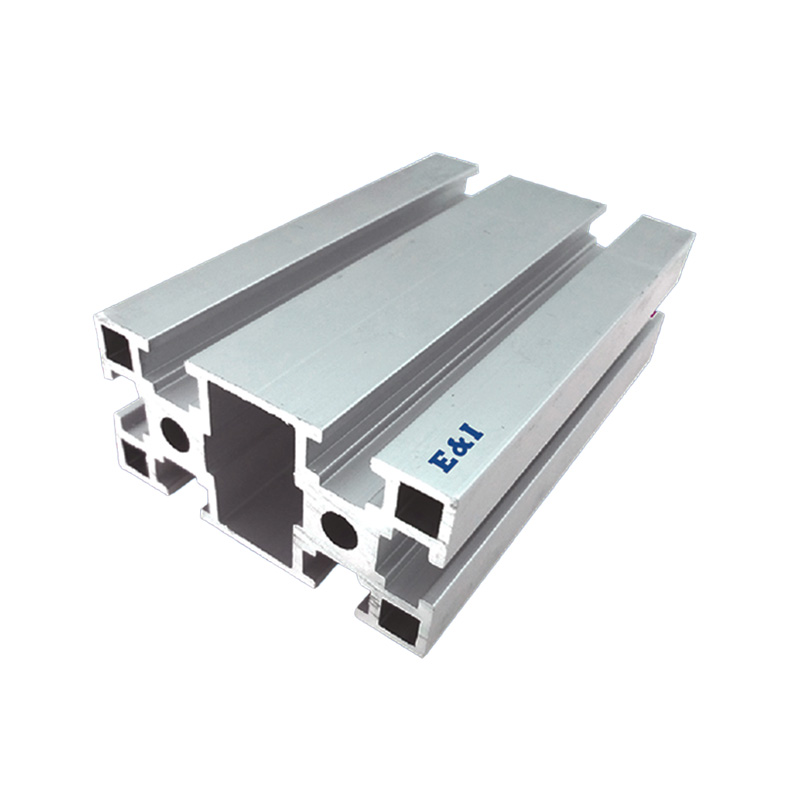

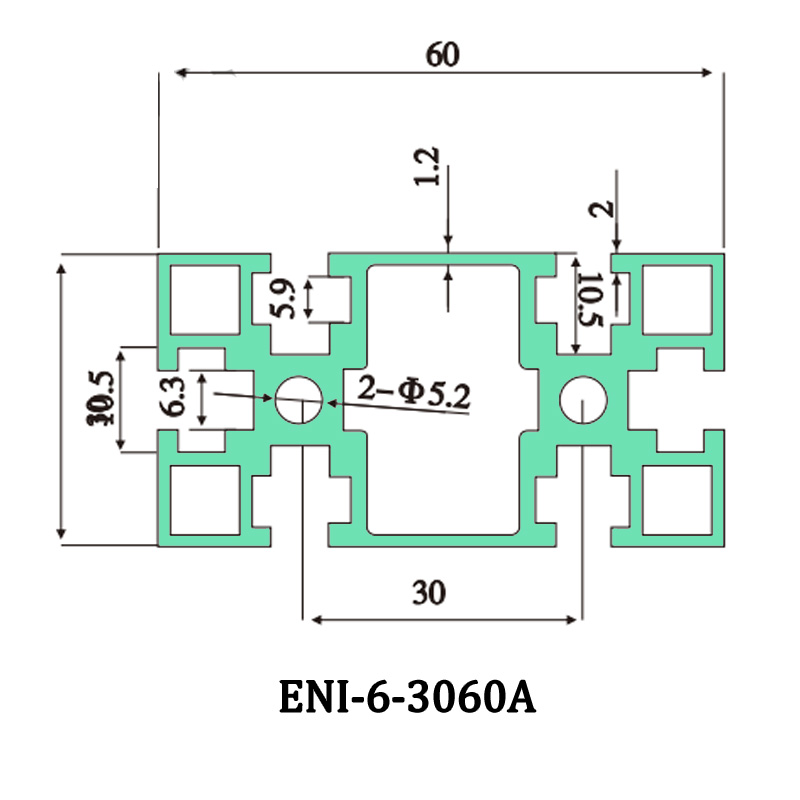

Standard aluminum profiles have become the material of choice for many companies in industrial production and equipment construction due to their lightweight, high strength and easy assembly. Among them, industrial aluminum profile ENI-6-3060A is widely used in aluminum profile brackets, aluminum profile machine frames and other scenarios due to its strong adaptability.
The assembly and connection of aluminum profiles are key. The T-slot joint is one of the core accessories for connecting aluminum profiles. It can be accurately embedded in the T-slot of the profile. When used with T-bolts and aluminum extrusion nuts, a firm connection between profiles can be achieved. This connection method does not require welding and can flexibly adjust the structure according to needs.
Slotted fasteners also play an important role in the assembly of aluminum profiles, such as elastic nuts, slider nuts, etc., which are commonly used post-mounted nuts. During installation, you only need to put them into the profile groove in advance, and tighten the bolts from the outside to automatically position them, which not only simplifies the installation process, but also ensures the stability of the connection.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-3030 |  |
 |
0.88kg/m | Ix:2.8cm4 Iy:2.8cm4 | Wx:1.87cm3 Wy:1.87cm3 |
| E&I-8-3030F |  |
 |
0.9kg/m | Ix:2.9cm4 Iy:2.9cm4 | Wx:1.93cm3 Wy:1.93cm3 |
| E&I-8-3030A |  |
 |
0.78kg/m | Ix:2.47cm4 Iy:2.47cm4 | Wx:1.65cm3 Wy:1.65cm3 |
| E&I-8-3030ME |  |
 |
0.91kg/m | Ix:2.75cm4 Iy:3.11cm4 | Wx:1.83cm3 Wy:2.07cm3 |
| E&I-8-3030M |  |
 |
0.9kg/m | Ix:3.0cm4 Iy:3.0cm4 | Wx:2.00cm3 Wy:2.00cm3 |
| ENI-6-3030G |  |
 |
|||
| E&I-8-3030R |  |
 |
0.88kg/m | Ix:2.56cm4 Iy:2.56cm4 | Wx:1.71cm3 Wy:1.71cm3 |
| E&I-8-3040 |  |
 |
1.42kg/m | Ix:6.80cm4 Iy:7.99cm4 | Wx:3.4cm3 Wy:5.33cm3 |
| E&I-8-3060 |  |
 |
1.61kg/m | Ix:5.36cm4 Iy:20.28cm4 | Wx:3.57cm3 Wy:6.76cm3 |
| ENI-6-3060C |  |
 |
|||
| E&I-8-3090 |  |
 |
2.39kg/m | Ix:7.92cm4 Iy:64.62cm4 | Wx:5.28cm3 Wy:14.36cm3 |
| E&I-8-30120 |  |
 |
3.40kg/m | Ix:11.91cm4 Iy:172.57cm4 | Wx:7.94cm3 Wy:28.76cm3 |
| E&I-8-30150 |  |
 |
7.40kg/m | Ix:23.79cm4 Iy:455.75cm4 | Wx:15.86cm3 Wy:60.77cm3 |
| E&I-8-30150A |  |
 |
3.56kg/m | Ix:12.92cm4 Iy:265.86cm4 | Wx:8.61cm3 Wy:35.45cm3 |
The ENI-6-3060A profile features a lightweight design, high strength-to-weight ratio, and excellent adaptability. It allows for quick and precise assembly of brackets and frames without requiring complex structural modifications.
T-slot joints fit directly into the profile's groove and secure tightly using standard T-bolts and aluminum extrusion nuts. This eliminates the need for expensive welding equipment, minimizes labor costs, and enables easy adjustments to the frame later on.
Unlike pre-mounted nuts, elastic and slider nuts can be placed directly into the profile's groove even after the frame structure has been partially or fully assembled. This saves installation time and allows for fast modifications.
Fastener compatibility depends on the slot width (e.g., 6mm or 8mm slots) and the model dimensions. Ensure you verify the profile slot size before purchasing corresponding T-bolts, elastic nuts, or slider nuts.
Yes. Because of their modular T-slot design and secure fastening system, you can easily assemble, disassemble, align, and reconstruct profiles into various custom configurations to fit your exact structural layout.
