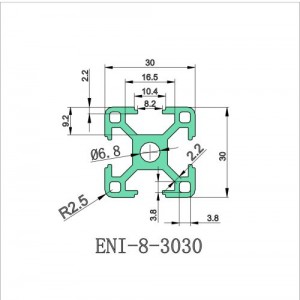

ENI-8-3030 Industrial Aluminum Profile is an affordable and high performance aluminum profile for architectural use. The profile features an anodized surface treatment that gives it excellent corrosion and weather resistance, while offering a wide range of color options to meet the aesthetic needs of different architectural projects.
Anodized surface treatment delivers excellent corrosion and weather resistance for long-lasting architectural performance.
Carefully designed channel widths and dimensions accommodate a variety of building standards and engineering requirements.
Full range of customization including cutting, drilling, and tapping to meet specific project needs with precision.
Reduces building loads and improves energy efficiency while delivering durability and low maintenance costs.
The modular design of ENI-8-3030 makes it ideal for building aluminum frames. Its channel widths and dimensions have been carefully designed to accommodate a variety of building standards and engineering requirements. This design not only simplifies the installation process, but also improves construction efficiency, thereby reducing overall construction costs.
Aluminum fabrication customization is another major advantage of ENI-8-3030. A range of customization services are available, from cutting and drilling to tapping, to ensure that each profile precisely meets the customer's specific needs. This customization capability makes ENI-8-3030 easily adaptable to a variety of complex building structures and design requirements.
As an architectural aluminum profile, ENI-8-3030's lightweight and high-strength characteristics allow it to excel in reducing building loads and improving energy efficiency. Its durability and low maintenance costs provide long-term value for building projects.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-3030 |
|
|
0.88kg/m | Ix:2.8cm4 Iy:2.8cm4 | Wx:1.87cm3 Wy:1.87cm3 |
| E&I-8-3030F |
|
|
0.9kg/m | Ix:2.9cm4 Iy:2.9cm4 | Wx:1.93cm3 Wy:1.93cm3 |
| E&I-8-3030A |
|
|
0.78kg/m | Ix:2.47cm4 Iy:2.47cm4 | Wx:1.65cm3 Wy:1.65cm3 |
| E&I-8-3030ME |
|
|
0.91kg/m | Ix:2.75cm4 Iy:3.11cm4 | Wx:1.83cm3 Wy:2.07cm3 |
| E&I-8-3030M |
|
|
0.9kg/m | Ix:3.0cm4 Iy:3.0cm4 | Wx:2.00cm3 Wy:2.00cm3 |
| ENI-6-3030G |
|
|
|||
| E&I-8-3030R |
|
|
0.88kg/m | Ix:2.56cm4 Iy:2.56cm4 | Wx:1.71cm3 Wy:1.71cm3 |
| E&I-8-3040 |
|
|
1.42kg/m | Ix:6.80cm4 Iy:7.99cm4 | Wx:3.4cm3 Wy:5.33cm3 |
| E&I-8-3060 |
|
|
1.61kg/m | Ix:5.36cm4 Iy:20.28cm4 | Wx:3.57cm3 Wy:6.76cm3 |
| ENI-6-3060C |
|
|
|||
| E&I-8-3090 |
|
|
2.39kg/m | Ix:7.92cm4 Iy:64.62cm4 | Wx:5.28cm3 Wy:14.36cm3 |
| E&I-8-30120 |
|
|
3.40kg/m | Ix:11.91cm4 Iy:172.57cm4 | Wx:7.94cm3 Wy:28.76cm3 |
| E&I-8-30150 |
|
|
7.40kg/m | Ix:23.79cm4 Iy:455.75cm4 | Wx:15.86cm3 Wy:60.77cm3 |
| E&I-8-30150A |
|
|
3.56kg/m | Ix:12.92cm4 Iy:265.86cm4 | Wx:8.61cm3 Wy:35.45cm3 |
The anodized surface treatment provides outstanding corrosion and weather resistance, ensuring long-lasting performance for architectural applications while offering diverse color options to suit project aesthetics.
The modular design incorporates standard channel widths and dimensions. This simplifies the assembly and integration process, speeds up construction, and helps in minimizing total labor costs.
Yes. There is a complete range of custom fabrication services available, including precision cutting, drilling, and tapping to ensure the profiles align perfectly with individual architectural specifications.
A lightweight yet high-strength structure reduces overall building loads, which enhances structural safety, lowers maintenance requirements, and increases energy efficiency.
The profiles come in various specific models (such as E&I-8-3030, 3030F, 3030A) with varying unit masses starting around 0.78kg/m, customized moment of inertia values, and tailored sectional resistance moments.
