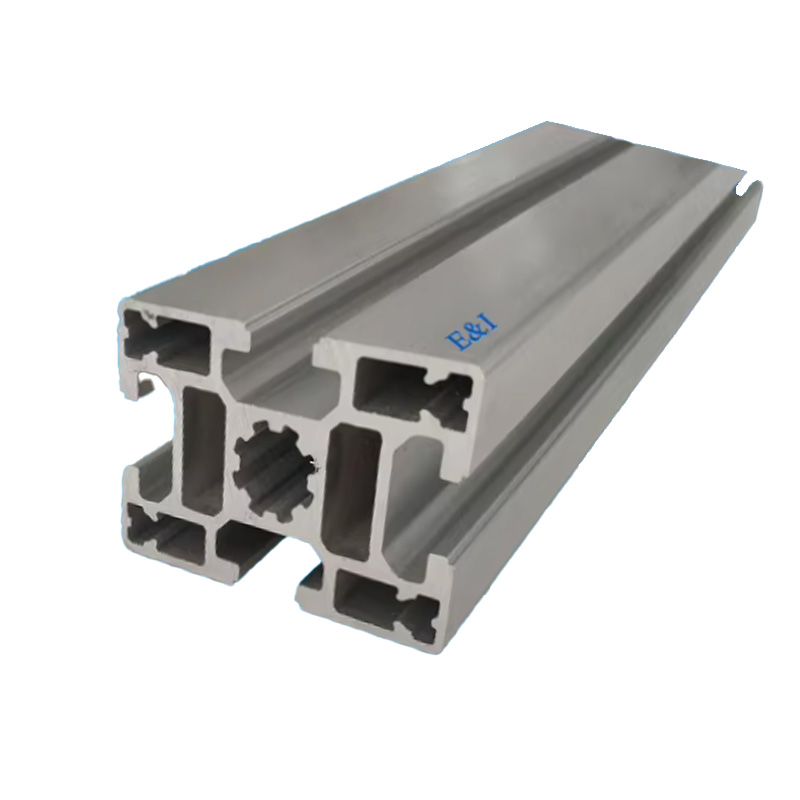

With its 10mm slot width design, ENI-10-4060H industrial aluminum profile has become an ideal choice for load-bearing frame structures. In factory workshops, it is the core skeleton for building waste recycling cabinets. Multiple profiles are combined through special connectors to form a stable cabinet frame. With drawer-type storage boxes or sorting partitions, it can efficiently sort and store various industrial wastes.
The modular structure allows for flexible adjustment of the internal layout according to the type of waste. The anodized frosted surface is wear-resistant and scratch-resistant, making it adaptable to the complex working environment of the workshop.
Ideal for load-bearing frame structures
Wear-resistant & scratch-resistant
Quick installation of shelves & hooks
Flexible internal layout adjustment
In warehousing and office scenes, ENI-10-4060H transforms into a storage frame and tool cabinet. The powerful load-bearing performance can easily carry heavy objects such as hardware tools and documents. The T-slot design supports the quick installation of accessories such as shelves and hooks to achieve classified storage of items and improve space utilization.
As an industrial profile that is both practical and beautiful, ENI-10-4060H has diverse application scenarios. In the commercial field, it is often used to build high-end exhibition cabinets. The simple and smooth profile lines combined with glass or acrylic panels can not only firmly support the exhibits, but also highlight the quality of the exhibits through the frosted texture.
The quick assembly feature can also help merchants complete the booth layout efficiently to adapt to the display needs of different exhibitions.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| ENI-6-4040 |  |
 |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| ENI-8-4040F |  |
 |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 | Wx:5.62cm3 Wy:5.62cm3 |
| ENI-8-4040GG |  |
 |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 | Wx:3.87cm3 Wy:3.87cm3 |
| ENI-8-4040T |  |
 |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 | Wx:2.55cm3 Wy:2.55cm3 |
| ENI-8-4040LC |  |
 |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 | Wx:3.18cm3 Wy:3.18cm3 |
| ENI-8-4040W |  |
 |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 | Wx:3.91cm3 Wy:3.91cm3 |
| ENI-8-4040B |  |
 |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| ENI-8-4040LD |  |
 |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 | Wx:3.11cm3 Wy:3.11cm3 |
| ENI-8-4040C |  |
 |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 | Wx:3.66cm3 Wy:3.66cm3 |
| ENI-8-4040D |  |
 |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 | Wx:4.99cm3 Wy:4.99cm3 |
| ENI-8-4040E |  |
 |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 | Wx:4.48cm3 Wy:4.48cm3 |
| ENI-8-4040EE |  |
 |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 | Wx:4.32cm3 Wy:4.48cm3 |
| ENI-10-4040H |  |
 |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| ENI-8-4040R |  |
 |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 | Wx:3.55cm3 Wy:3.55cm3 |

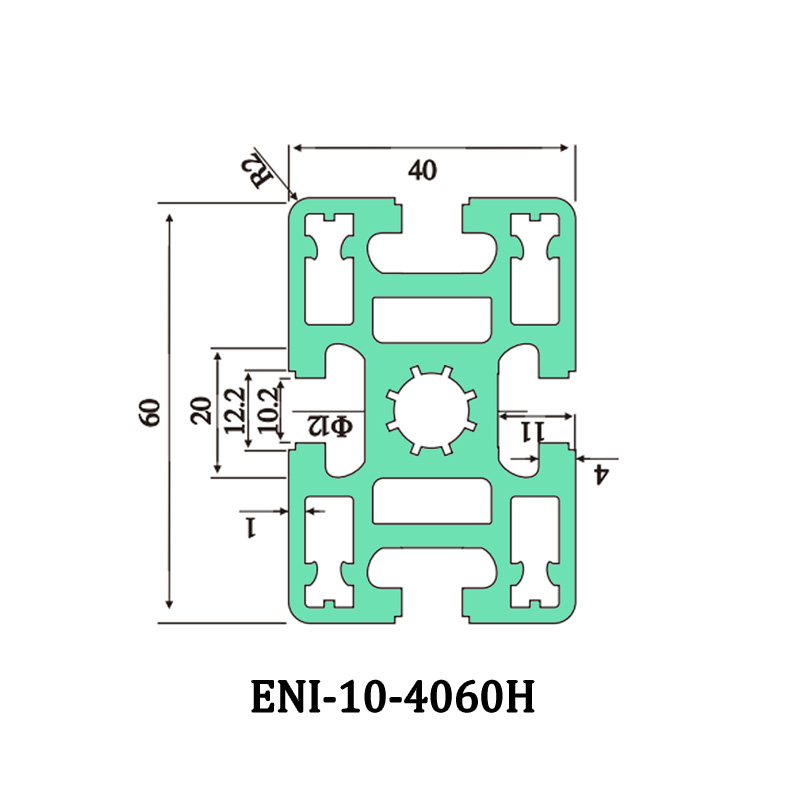

| ENI-10-4060H |  |
 |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 | Wx:6.67cm3 Wy:9.23cm3 |
| ENI-8-4080GA |  |
 |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 | Wx:7.21cm3 Wy:13.65cm3 |
| ENI-8-4080C |  |
 |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 | Wx:6.86cm3 Wy:13.08cm3 |
| ENI-8-4080M |  |
 |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 | Wx:7.00cm3 Wy:13.23cm3 |
| ENI-8-4080F |  |
 |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 | Wx:9.83cm3 Wy:19.83cm3 |
| ENI-10-4080H |  |
 |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 | Wx:8.07cm3 Wy:15.43cm3 |
| ENI-8-4080 |  |
 |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 | Wx:8.24cm3 Wy:16.48cm3 |
| ENI-8-4080I |  |
 |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 | Wx:9.56cm3 Wy:18.33cm3 |
| ENI-8-40120 |  |
 |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 | Wx:12.76cm3 Wy:36.63cm3 |
| ENI-8-40120E |  |
 |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 | Wx:12.98cm3 Wy:39.71cm3 |
| ENI-8-40160 |  |
 |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 | Wx:19.92cm3 Wy:69.99cm3 |
| ENI-8-40160B |  |
 |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 | Wx:15.96cm3 Wy:57.22cm3 |
The ENI-10-4060H profile is highly versatile, commonly used for structural frameworks in factory workshops (like waste recycling cabinets), load-bearing storage frames and tool cabinets in offices or warehouses, and premium commercial exhibition setups.
The 10mm slot width provides robust connection strength and stability, making it the perfect choice for building heavy-duty modular frames that need to carry heavy components, industrial equipment, or heavy tools.
The anodized frosted surface treatment provides superior wear and scratch resistance. This protective layer ensures the aluminum profiles withstand harsh, complex workshop environments while maintaining a sleek, professional aesthetic.
Its modular nature allows users to easily adjust the internal layout, attach custom shelving, install sorting partitions, or reorganize frameworks to fit changing space or material handling requirements.
Yes. The T-slot design allows for the quick and seamless installation of accessories like hooks, shelves, brackets, or panels without complex machining, significantly reducing setup time for displays and custom workstations.
