| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-10-4545R |  |
 |
1.69kg/m | Ix:10.76cm4 Iy:10.76cm4 |
Wx:4.78cm3 Wy:4.78cm3 |
| E&I-10-4545RQ |  |
 |
1.60kg/m | Ix:9.99cm4 Iy:9.99cm4 |
Wx:4.44cm3 Wy:4.44cm3 |
| E&I-10-4545W |  |
 |
2.22kg/m | Ix:15.02cm4 Iy:15.14cm4 |
Wx:6.68cm3 Wy:6.72cm3 |
| E&I-10-4545L |  |
 |
1.51kg/m | Ix:10.85cm4 Iy:10.85cm4 |
Wx:4.82cm3 Wy:4.82cm3 |
| E&I-10-4545 |  |
 |
1.75kg/m | Ix:12.66cm4 Iy:12.66cm4 |
Wx:5.63cm3 Wy:5.63cm3 |
| E&I-10-4560 |  |
 |
2.43kg/m | Ix:17.00cm4 Iy:28.73cm4 |
Wx:7.6cm3 Wy:9.58cm3 |

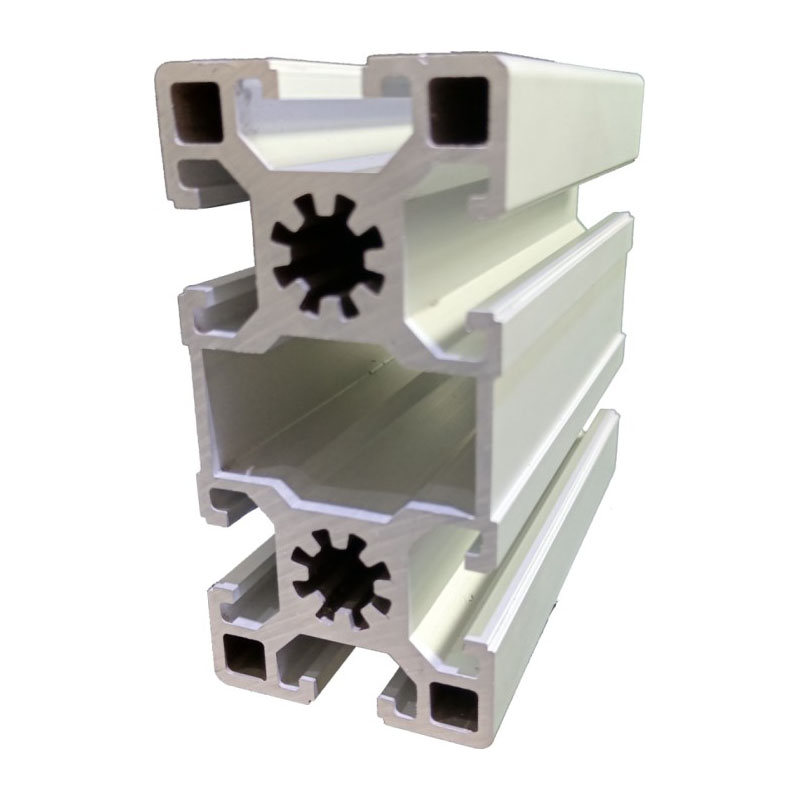

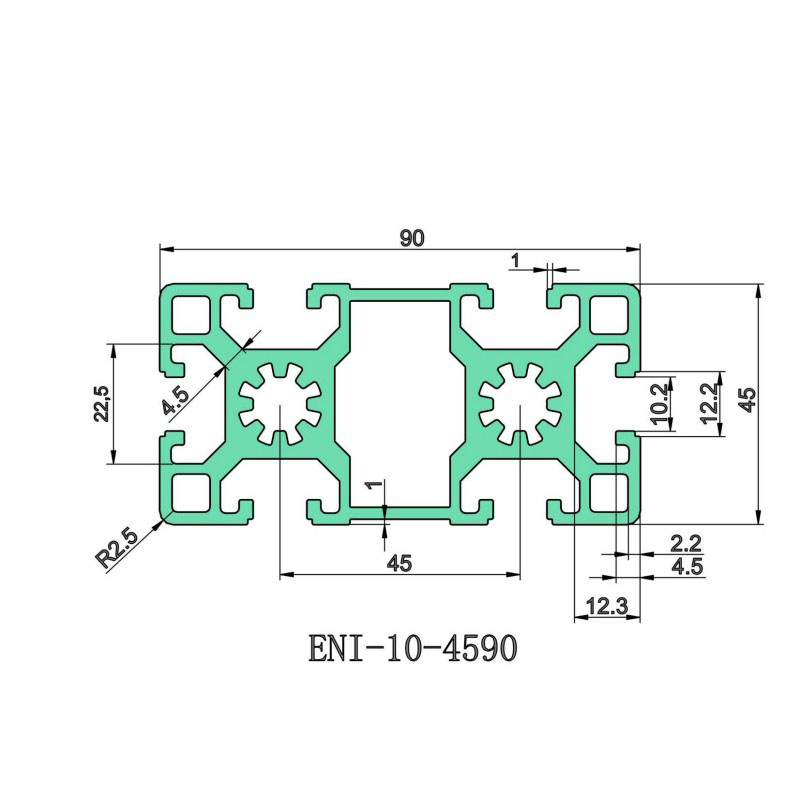

| E&I-10-4590 |  |
 |
3.65kg/m | Ix:25.20cm4 Iy:107.46cm4 |
Wx:11.2cm3 Wy:23.88cm3 |
| E&I-10-4590W |  |
 |
3.92kg/m | Ix:28.94cm4 Iy:110.96cm4 |
Wx:12.86cm3 Wy:24.66cm3 |
This profile is highly suitable for high-load industrial frameworks, heavy-duty mechanical brackets, automated assembly lines, electromechanical equipment structures, and safety guardrails due to its outstanding load-bearing capacity and structural stability.
The anodized finish provides a smooth, aesthetically clean appearance while significantly enhancing corrosion resistance, wear resistance, and surface hardness, ensuring durability in harsh industrial settings.
Profiles with a 10mm slot width are compatible with standard M10 fasteners, heavy-duty T-nuts, roll-in T-nuts, and specialized brackets designed for 10mm slot aluminum extrusion systems.
Yes. The modular architecture inherently supports flexible assembly. We support custom processing services, including precise cutting, drilling, tapping, and milling, tailored to your design requirements.
Aluminum has excellent thermal dissipation properties. When used as structural frames for electromechanical equipment, the profile helps dissipate heat away from active components, improving overall operational safety and equipment lifetime.
