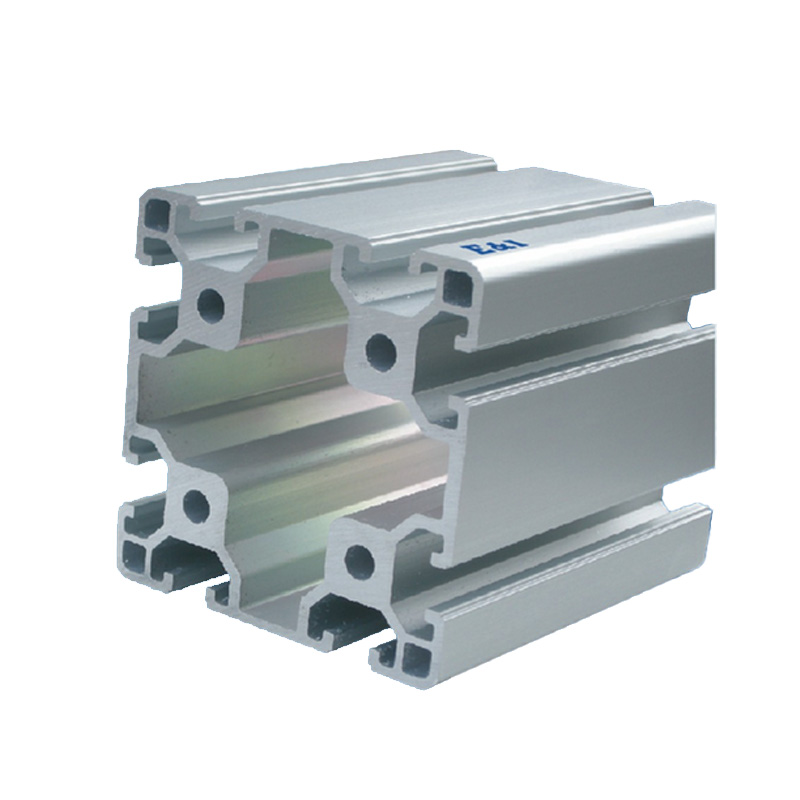

With its excellent performance, ENI-8-8080 aluminum profile has become an ideal material choice in many fields, with significant cost-effective advantages. In the field of exhibitions, it is an excellent choice for building display stands. Its lightweight nature greatly reduces transportation and construction costs. The ease of processing allows complex-shaped exhibition stands to be quickly formed. The stable structure ensures that the booth is always stable in crowded exhibition activities and provides a reliable display platform for exhibits.
For industrial modular structures, ENI-8-8080 aluminum profiles also perform well. It can provide stable support and reliable connection for various industrial structures. When making machine fences, it can not only effectively isolate workers and operating equipment to avoid safety accidents, but also can flexibly adjust the fence structure according to the equipment layout to adapt to the needs of different scenarios.
In automated production lines, the high precision and good rigidity of ENI-8-8080 aluminum profiles highlight their advantages. It provides solid support for automated equipment, reduces vibration and displacement during equipment operation, ensures production accuracy and efficiency, and helps the production line operate stably and efficiently.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-8840R | ![]() |
![]() |
3.77kg/m | Ix:84.76cm4 Iy:85.09cm4 |
Wx:21.19cm3 Wy:21.27cm3 |
| E&I-8-8080K | ![]() |
![]() |
3.66kg/m | Ix:88.04cm4 Iy:88.04cm4 |
Wx:22.01cm3 Wy:22.01cm3 |
| E&I-8-8080T | ![]() |
![]() |
3.99kg/m | Ix:104.32cm4 Iy:104.32cm4 |
Wx:26.08cm3 Wy:26.08cm3 |

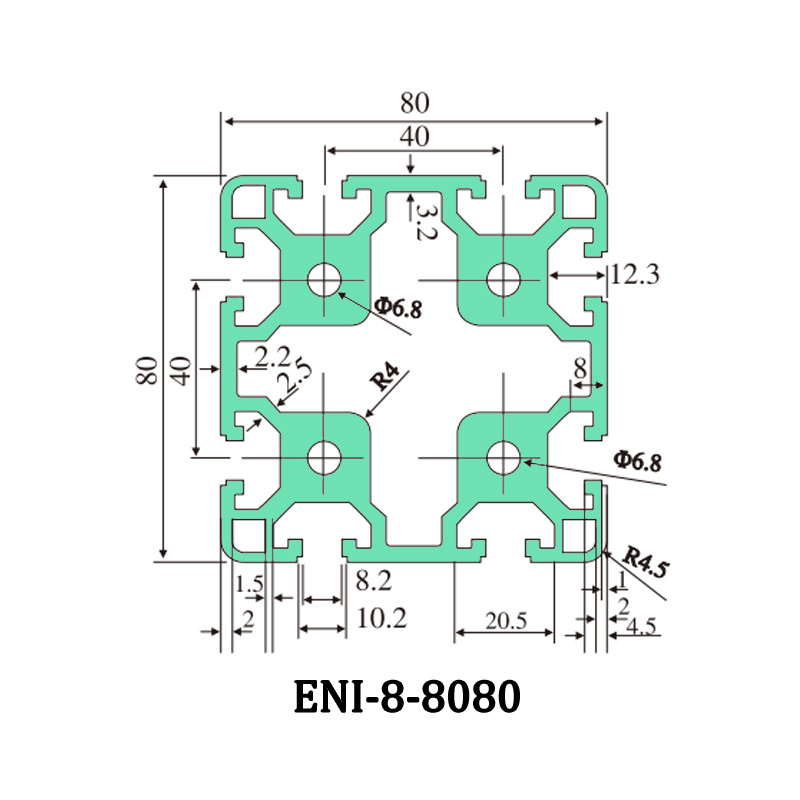

| E&I-8-8080 | ![]() |
![]() |
4.82kg/m | Ix:122.77cm4 Iy:118.8cm4 |
Wx:30.69cm3 Wy:29.7cm3 |
| E&I-8-8080W | ![]() |
![]() |
5.66kg/m | Ix:147.13cm4 Iy:144.33cm4 |
Wx:36.78cm3 Wy:36.08cm3 |
| E&I-8-8080G | ![]() |
![]() |
5.68kg/m | Ix:146.63cm4 Iy:154.96cm4 |
Wx:36.66cm3 Wy:38.74cm3 |
| E&I-10-8080H | ![]() |
![]() |
4.25kg/m | Ix:109.92cm4 Iy:109.92cm4 |
Wx:27.48cm3 Wy:27.48cm3 |
| E&I-8-80120 | ![]() |
![]() |
6.89kg/m | Ix:204.89cm4 Iy:443.57cm4 |
Wx:51.22cm3 Wy:73.93cm3 |
| E&I-8-80160 | ![]() |
![]() |
9.09kg/m | Ix:238.24cm4 Iy:809.89cm4 |
Wx:59.56cm3 Wy:101.24cm3 |
| E&I-10-80160H | ![]() |
![]() |
9.03kg/m | Ix:263.59cm4 Iy:918.18cm4 |
Wx:65.79cm3 Wy:114.77cm3 |
Its lightweight nature significantly reduces transportation and construction costs. Furthermore, it is easy to process into complex shapes while maintaining a stable structure under crowded conditions.
Yes. In industrial modular structures, they provide stable support and reliable connections, allowing flexible adjustment of fences to isolate workers from operating equipment safely.
They offer high precision and good rigidity, which provides robust support for automation equipment, reducing vibration and displacement during operation to maximize efficiency.
You should evaluate the Unit Mass (kg/m), Moment of Inertia (Ix, Iy), and Sectional Resistance Moment (Wx, Wy) according to your project's load and structural demands.
Unit mass varies depending on the profile structure. For instance, the standard E&I-8-8080 is 4.82kg/m, whereas reinforced options like E&I-8-8080W go up to 5.66kg/m for increased structural strength.
