E&I-10-50100LC T-slot aluminum profile, slot width 10mm, specification 50mm×100mm, made of high-quality aluminum alloy, anodized, has good corrosion resistance, wear resistance and fatigue resistance. E&I-10-50100LC is particularly suitable for industrial application scenarios with high load requirements, including automation equipment support, industrial frame structure and precision engineering frame.
solutions in industrial applications such as automated assembly lines and mechanical manufacturing frames. The profile has good thermal conductivity and high temperature resistance, and can still operate stably in complex environments that require high load-bearing capacity. The easy processing of E&I-10-50100LC means that it can be cut and installed quickly, making it a very cost-effective choice in industrial engineering.
Whether used for supporting industrial frame structures or as the base material for high-precision engineering, E&I-10-50100LC can meet the project's high standards for strength, stability and adaptability, making it an ideal material choice for high-load applications.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-5050L |  |
 |
2.58kg/m | Ix:21.71cm4 Iy:21.71cm4 |
Wx:8.68cm3 Wy:8.68cm3 |
| E&I-8-5050W |  |
 |
2.96kg/m | Ix:25.78cm4 Iy:25.78cm4 |
Wx:10.31cm3 Wy:10.31cm3 |
| E&I-10-5050B |  |
 |
2.46kg/m | Ix:20.34cm4 Iy:20.34cm4 |
Wx:8.14cm3 Wy:8.14cm3 |
| E&I-10-5050C |  |
 |
2.58kg/m | Ix:21.71cm4 Iy:21.71cm4 |
Wx:8.68cm3 Wy:8.68cm3 |
| E&I-8-50100 |  |
 |
5.72kg/m | Ix:51.70cm4 Iy:192.29cm4 |
Wx:20.68cm3 Wy:38.46cm3 |
| E&I-10-50100LC | |
 |
4.04kg/m | Ix:36.44cm4 Iy:153.93cm4 |
Wx:14.58cm3 Wy:30.79cm3 |

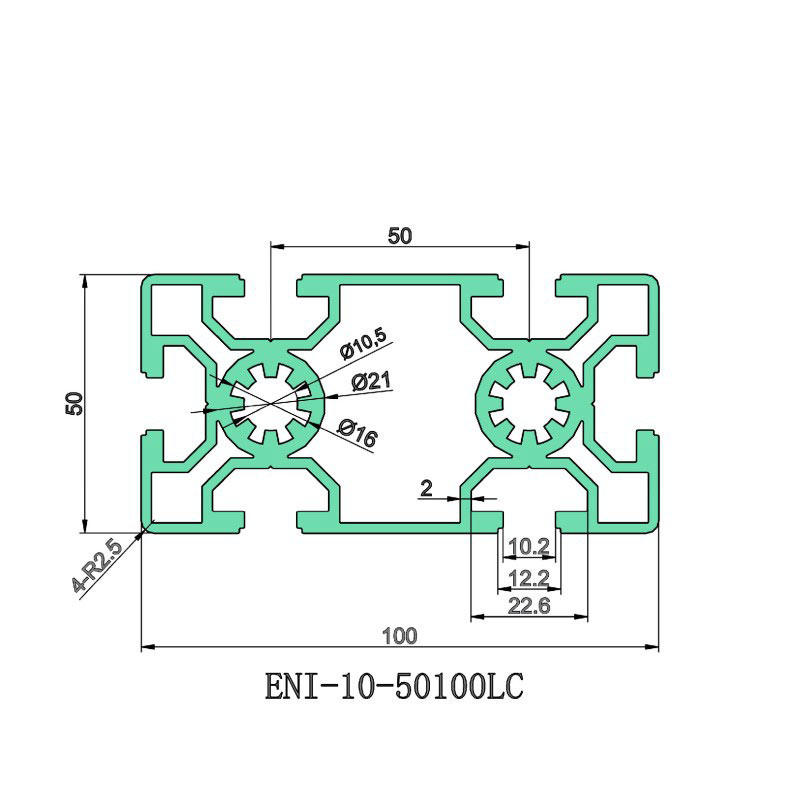

The E&I-10-50100LC has a slot width of 10mm and a cross-section specification of 50mm × 100mm. It is designed to handle high load requirements in heavy-duty industrial structures.
The profiles undergo an anodizing surface treatment. This process enhances their corrosion resistance, wear resistance, and fatigue resistance, making them ideal for long-term use in demanding industrial environments.
It is highly suitable for automation equipment support, automated assembly lines, mechanical manufacturing frames, industrial frame structures, and precision engineering frames due to its structural strength and high load capacity.
The high-quality aluminum alloy construction offers good thermal conductivity and high-temperature resistance, allowing the profile to remain stable and operate efficiently under high-temperature conditions.
The E&I-10-50100LC profile has a unit mass of 4.04 kg/m. Its moment of inertia values are Ix: 36.44 cm⁴ and Iy: 153.93 cm⁴, while its sectional resistance moment values are Wx: 14.58 cm³ and Wy: 30.79 cm³.
