| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-3030 |  |
 |
0.88kg/m | Ix:2.8cm4 Iy:2.8cm4 | Wx:1.87cm3 Wy:1.87cm3 |
| E&I-8-3030F |  |
 |
0.9kg/m | Ix:2.9cm4 Iy:2.9cm4 | Wx:1.93cm3 Wy:1.93cm3 |
| E&I-8-3030A |  |
 |
0.78kg/m | Ix:2.47cm4 Iy:2.47cm4 | Wx:1.65cm3 Wy:1.65cm3 |
| E&I-8-3030ME |  |
 |
0.91kg/m | Ix:2.75cm4 Iy:3.11cm4 | Wx:1.83cm3 Wy:2.07cm3 |
| E&I-8-3030M |  |
 |
0.9kg/m | Ix:3.0cm4 Iy:3.0cm4 | Wx:2.00cm3 Wy:2.00cm3 |
| ENI-6-3030G |  |
 |
|||
| E&I-8-3030R |  |
 |
0.88kg/m | Ix:2.56cm4 Iy:2.56cm4 | Wx:1.71cm3 Wy:1.71cm3 |
| E&I-8-3040 |  |
 |
1.42kg/m | Ix:6.80cm4 Iy:7.99cm4 | Wx:3.4cm3 Wy:5.33cm3 |
| E&I-8-3060 |  |
 |
1.61kg/m | Ix:5.36cm4 Iy:20.28cm4 | Wx:3.57cm3 Wy:6.76cm3 |
| ENI-6-3060C |  |
 |
|||
| E&I-8-3090 |  |
 |
2.39kg/m | Ix:7.92cm4 Iy:64.62cm4 | Wx:5.28cm3 Wy:14.36cm3 |
| E&I-8-30120 |  |
 |
3.40kg/m | Ix:11.91cm4 Iy:172.57cm4 | Wx:7.94cm3 Wy:28.76cm3 |
| E&I-8-30150 |  |
 |
7.40kg/m | Ix:23.79cm4 Iy:455.75cm4 | Wx:15.86cm3 Wy:60.77cm3 |
| E&I-8-30150A |  |
 |
3.56kg/m | Ix:12.92cm4 Iy:265.86cm4 | Wx:8.61cm3 Wy:35.45cm3 |

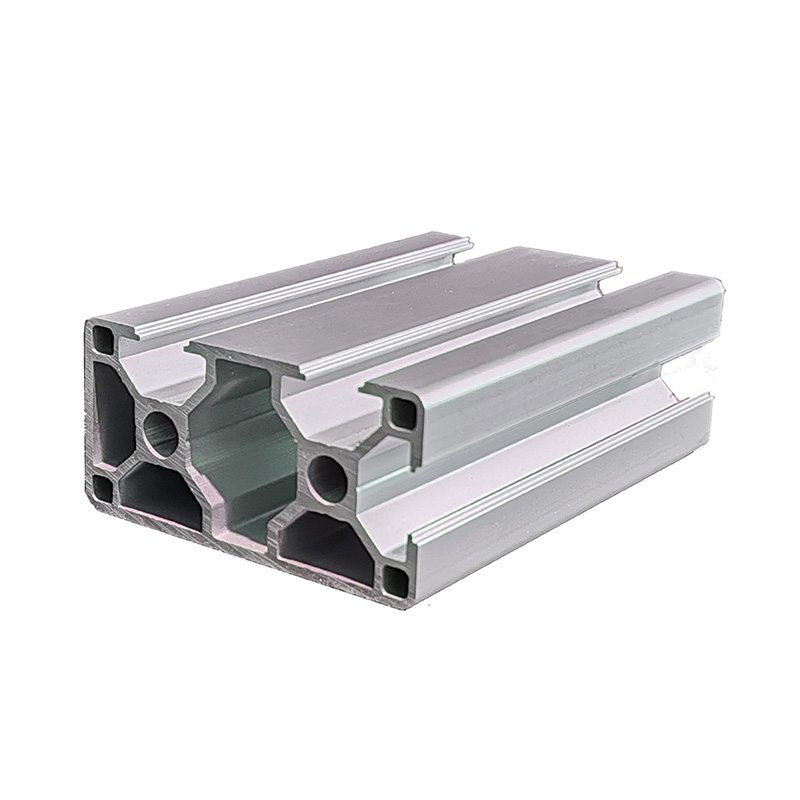

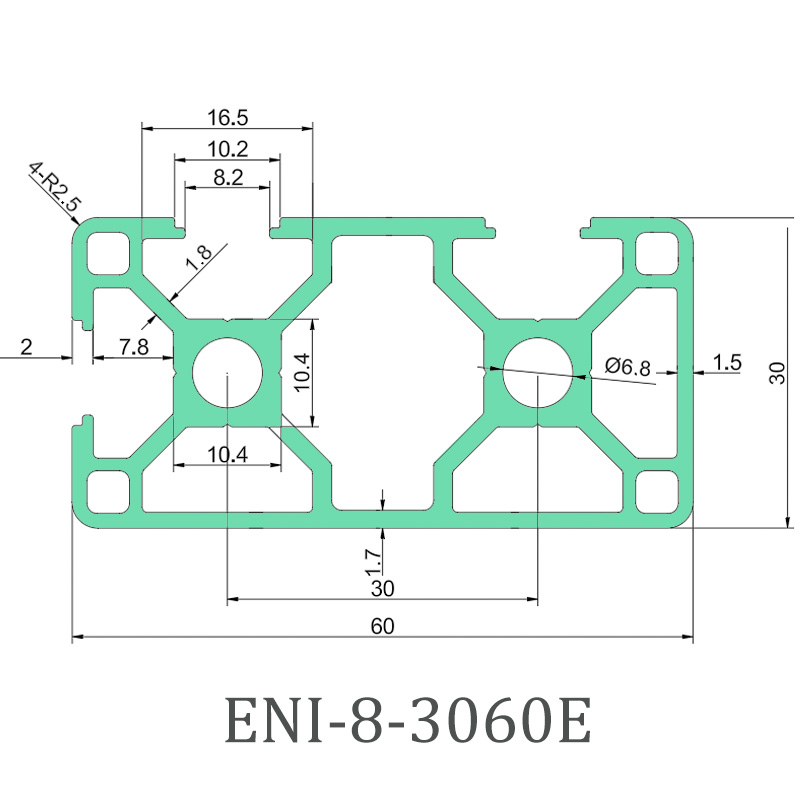

ENI-8-3060E aluminum profile is a popular model in industrial applications. It is made of 6063-T5 aluminum alloy base material. The load-bearing range covers 22kg–55kg. The actual load-bearing capacity can be flexibly adjusted according to the wall thickness, cross-sectional design and support method. Proper matching of the connection structure can further improve the load capacity and adapt to the industrial needs of multiple scenarios. The surface of the profile has undergone standard anodizing treatment to form a dense and uniform oxidation protective film, which has excellent anti-corrosion and anti-oxidation properties and a longer service life.
The industrial aluminum profile assembly line workbench built from ENI-8-3060E aluminum profiles is a high-quality supporting tool for factory assembly line processing operations: the frame and main columns are all made of this profile, and are matched with green anti-static workbench plates. Installed connectors, T-bolts and T-nuts complete a stable connection; the bottom is equipped with adjustable foot connectors to ensure a stable tabletop, decorative end caps are installed on the profile cutouts, and sealing grooves are embedded in the T-shaped slots, which can effectively reduce dust accumulation and make daily maintenance and cleaning more worry-free.
During use, lighting, oscillating fans and other equipment can be flexibly installed according to work needs, and a storage board can be added above the table to store tools and materials.
Deeply involved in the application field of aluminum profiles, we provide design and assembly services for all types of aluminum profile structures such as clean sheds, dust-free rooms, industrial platforms, product display racks, safety fences, equipment frames, assembly line workbenches, etc., and also support the wholesale and retail of profiles and supporting accessories.
