| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-1530 |  |
 |
0.67kg/m | Ix:0.7cm4 Iy:1.47cm4 |
Wx:0.93cm3 Wy:0.98cm3 |
| E&I-6-1560 |  |
 |
1.29kg/m | Ix:1.21cm4 Iy:12.44cm4 |
Wx:1.61cm3 Wy:4.15cm3 |
| E&I-8-1640 |  |
 |
1.18kg/m | Ix:1.14cm4 Iy:7.17cm4 |
Wx:1.43cm3 Wy:3.59cm3 |
| E&I-6-1818 |  |
 |
0.45kg/m | Ix:0.43cm4 Iy:0.67cm4 |
Wx:0.47cm3 Wy:0.74cm3 |
Today, as home decoration pursues environmental protection and cost-effectiveness, homemade cabinets using ENI-6 series aluminum profiles have become a new choice for more and more DIY enthusiasts. This installation method that does not require professional carpentry not only meets the needs of personalized customization, but also solves the hidden dangers of formaldehyde in traditional cabinets from the root, creating a truly healthy kitchen space.
The first step in making your own aluminum profile cabinets is precise measurement and design, which determines the smoothness of the final installation. When measuring, in addition to recording the length and width of the kitchen wall, the height of the feet must be included in the calculation in advance. At the same time, the partitions of shelves, cabinet doors, drawers, and the embedded positions of sinks and stoves must be planned in advance to avoid dimensional conflicts in subsequent installations.
"Column Load-bearing → Frame Support → Cross-bar Reinforcement"
Stronger profile used as cabinet column — ensures load-bearing performance while supporting hinge installation.
Builds the overall outer frame to support the full weight of the countertop.
Strengthens overall structural stability — the entire frame stays firm even with heavy objects placed on it.
Compared with traditional wooden cabinets, the advantages of aluminum profile cabinets are very prominent.
Raw materials contain no harmful adhesives — zero formaldehyde release from the source. Move in right after decoration with no pollution concerns.
Anodized profiles offer a smooth, corrosion-resistant surface. Kitchen fumes and water stains wipe off easily — no oxidation or discoloration over long-term use.
No professional workers needed — fully DIY-friendly. Save significantly on labor costs while achieving a fully customized result.
After the design is completed, you only need to submit the drawings to the aluminum profile manufacturer. The manufacturer will complete cutting, tapping, drilling and other pre-processing according to the design. It will also provide all accessories such as angle slot connectors, bolts and nuts, corner codes, etc., and package and label them in the order of installation.
Install the built-in corner slot connectors into the profile at the corners.
Use external corner codes and bolts to consolidate the connection.
After the frame is assembled, install the feet for leveling.
Install the shelves, cabinet doors, and drawers in sequence — your exclusive environmentally friendly cabinets are complete.
A: ENI-6 series aluminum profiles are lightweight, have high structural strength, and feature an anodized finish that is highly resistant to corrosion and kitchen grease. They allow for easy modular assembly without the need for welding or professional carpentry.

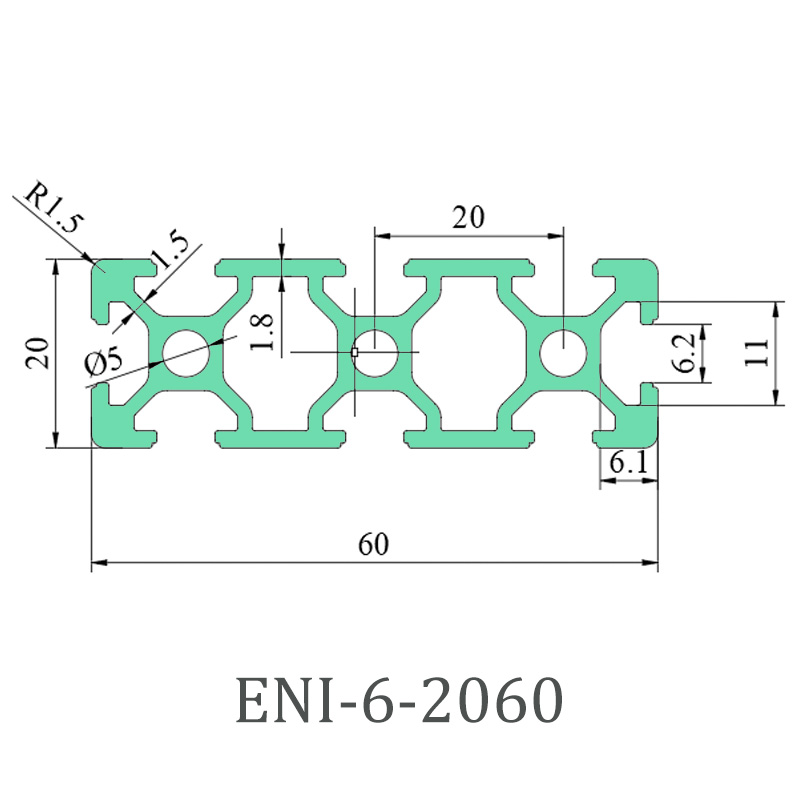

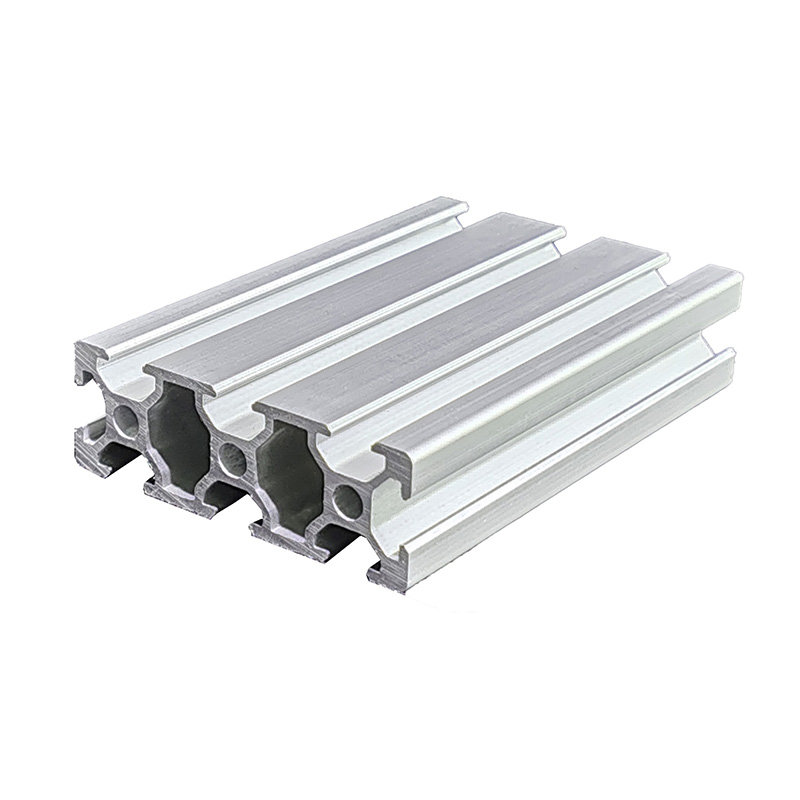

A: A reliable cabinet framework follows a clear logic: use stronger profiles like ENI-6-2060 for the load-bearing columns, ENI-6-2040 for the outer frames to support countertops, and lighter ENI-6-2020 profiles for internal support bars.
A: Yes, unlike traditional wooden boards which use chemical adhesives, aluminum profiles are made of metal and assembled mechanically. This prevents any release of formaldehyde, making them highly eco-friendly.
A: The assembly process is very simple. Since the profiles are pre-cut and pre-processed by the manufacturer, you only need basic tools like a hex wrench, a screwdriver, and a spirit level to complete the frame installation.
A: You can measure your kitchen space, sketch out your cabinet design layout, and submit the dimensions to the profile supplier. They will cut, drill, and prepare the profiles and supply the corresponding connectors according to your specifications.
