1 / 2
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-4040 |  |
 |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 |
Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040F |  |
 |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 |
Wx:5.62cm3 Wy:5.62cm3 |
| E&I-8-4040GG |  |
 |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 |
Wx:3.87cm3 Wy:3.87cm3 |
| E&I-8-4040T |  |
 |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 |
Wx:2.55cm3 Wy:2.55cm3 |
| E&I-8-4040LC |  |
 |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 |
Wx:3.18cm3 Wy:3.18cm3 |
| E&I-8-4040W |  |
 |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 |
Wx:3.91cm3 Wy:3.91cm3 |
| E&I-8-4040B |  |
 |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 |
Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040LD |  |
 |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 |
Wx:3.11cm3 Wy:3.11cm3 |
| E&I-8-4040C |  |
 |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 |
Wx:3.66cm3 Wy:3.66cm3 |
| E&I-8-4040D |  |
 |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 |
Wx:4.99cm3 Wy:4.99cm3 |
| E&I-8-4040E |  |
 |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 |
Wx:4.48cm3 Wy:4.48cm3 |
| E&I-8-4040EE |  |
 |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 |
Wx:4.32cm3 Wy:4.48cm3 |
| E&I-10-4040H |  |
 |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 |
Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040R |  |
 |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 |
Wx:3.55cm3 Wy:3.55cm3 |
| E&I-10-4060H |  |
 |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 |
Wx:6.67cm3 Wy:9.23cm3 |
| E&I-8-4080GA |  |
 |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 |
Wx:7.21cm3 Wy:13.65cm3 |
| E&I-8-4080C |  |
 |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 |
Wx:6.86cm3 Wy:13.08cm3 |
| E&I-8-4080M |  |
 |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 |
Wx:7.00cm3 Wy:13.23cm3 |
| E&I-8-4080F |  |
 |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 |
Wx:9.83cm3 Wy:19.83cm3 |
| E&I-10-4080H |  |
 |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 |
Wx:8.07cm3 Wy:15.43cm3 |
| E&I-8-4080 |  |
 |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 |
Wx:8.24cm3 Wy:16.48cm3 |
| E&I-8-4080I |  |
 |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 |
Wx:9.56cm3 Wy:18.33cm3 |
| E&I-8-40120 |  |
 |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 |
Wx:12.76cm3 Wy:36.63cm3 |
| E&I-8-40120E |  |
 |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 |
Wx:12.98cm3 Wy:39.71cm3 |
| E&I-8-40160 |  |
 |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 |
Wx:19.92cm3 Wy:69.99cm3 |
| E&I-8-40160B |  |
 |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 |
Wx:15.96cm3 Wy:57.22cm3 |
In the wave of home decoration that pursues individuality and practicality, industrial style has become a favorite among young renters with its rugged and simple characteristics. A hand-made aluminum profile suspended bed not only fits the cold texture of industrial style, but also meets the needs of flexible renovation of rental houses. It also has the advantage of being environmentally friendly and free of formaldehyde, making it a very cost-effective home choice.

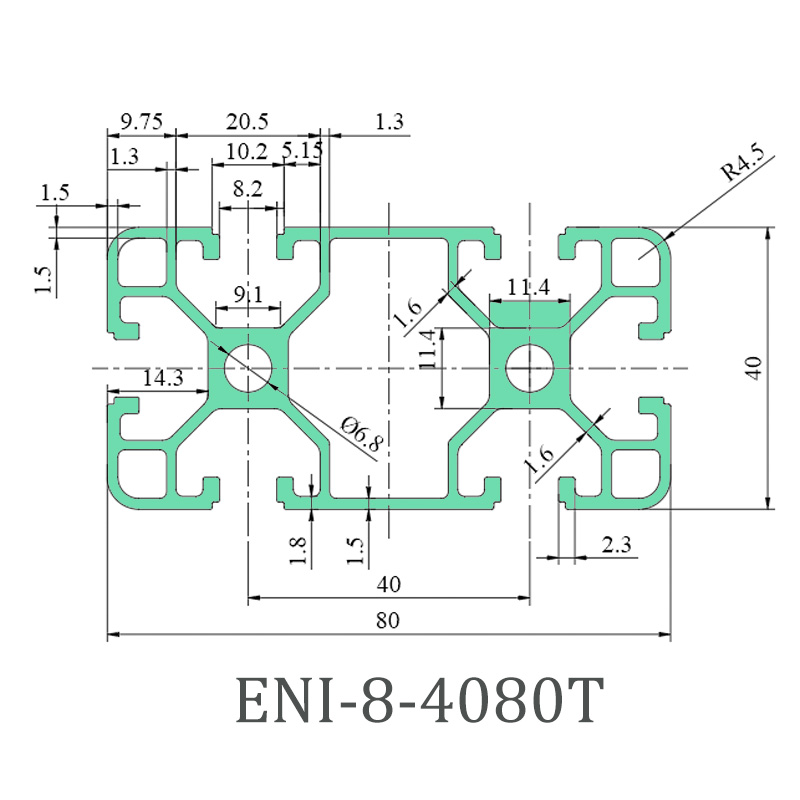

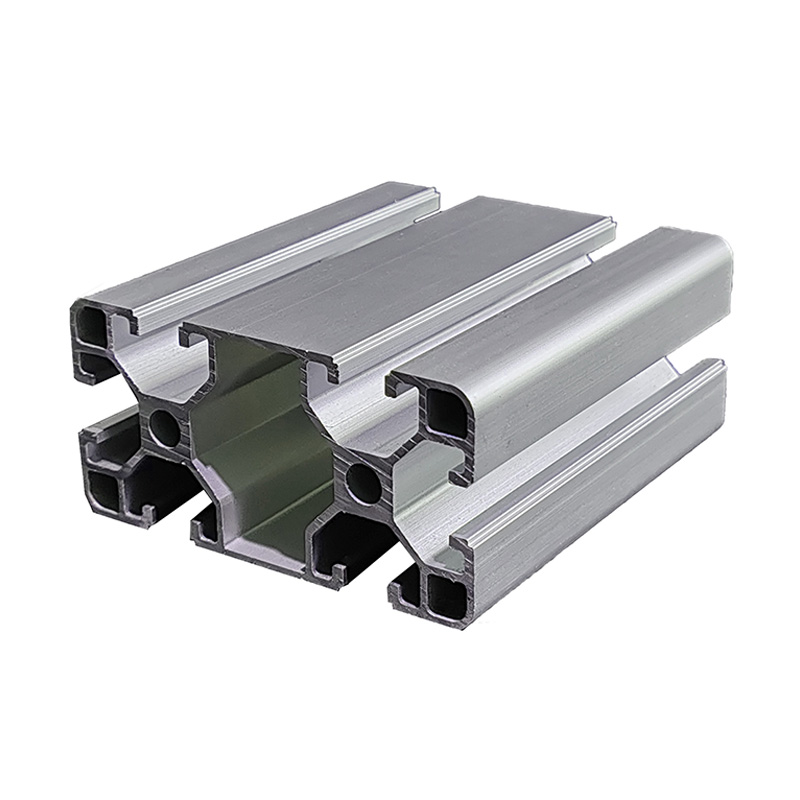

The preset size of this custom-made suspended bed is 2.0m × 1.8m, which is just right for most bedroom spaces. The structural design takes into account both stability and sophistication: ENI-8-4080T aluminum profiles are used as the main crossbar to build the bed frame, and ENI-8-8080T aluminum profiles are used as support columns. It is strong enough to handle daily use, and it will not deform or shake when more than ten people are lying on it.
The connection is double reinforced with built-in connectors and corner codes of corresponding specifications. Professional welding skills are not required. As long as you can twist the screws, the assembly can be completed. One person can easily install the entire bed.
Anti-slip foot covers at the bottom of columns reduce abnormal noise, absorb shock, and protect the original floor — no repairs needed when renting out.
End covers at profile cutouts and sealing strips in T-shaped slots completely block dust. Daily cleaning only requires a simple wipe.
The surface of the aluminum material has been professionally anodized to form a uniform and dense oxide film, which not only makes the surface of the finished product smooth and burr-free, but also increases the hardness to 300HV, making it less likely to be scratched and worn in daily use.
More importantly, it avoids the hidden dangers of formaldehyde in man-made panels. It can be used immediately after installation, without worrying about odor pollution. The cool metal texture combined with the simple suspended structure just fits the industrial style space tone. It is very harmonious when paired with brown leather soft bags or old wooden bed boards. Even a simply renovated rental house can instantly enhance the space style.
The default setup is designed for a space of 2.0 meters by 1.8 meters, which easily fits inside most standard bedrooms.
No, welding is not required. The components connect securely using internal structural connectors and specialized corner joints. A single person can handle the assembly process using basic hand tools.
The design features specialized non-slip foot protective covers on the columns that damp vibrations, reduce unwanted noise, and protect floor surfaces from scratching.
Anodizing provides a scratch-resistant surface with a hardness rating of 300HV. It eliminates any concerns regarding formaldehyde gases or off-gassing odors, allowing immediate occupancy.
The profiles are fitted with clean end-caps, and slot sealers are integrated into the T-slots. This blocks accumulation of dust inside the frame, making routine cleaning as simple as a light wipe.
