The 8-4080M industrial aluminum profile is a structural aluminum alloy designed for modern industrial environments. It is 40mm*80mm in size, modular in design, and anodized with strong corrosion resistance. It is particularly suitable for high-demand application scenarios such as factory shelves, workshop clean sheds, and assembly line clean rooms. The solid structure of 8-4080M is combined with a variety of accessories, which can be flexibly customized according to different scene requirements to meet the storage and construction needs in clean and high-standard workshops.
As a lightweight and durable aluminum profile, the 8-4080M has excellent load-bearing capacity and structural stability, and can easily build multi-layer storage racks, shelf frames, etc., to improve the utilization rate of workshop space. The anodizing treatment makes the surface dust-proof and wear-resistant, not easily affected by the environment, effectively extending the service life, and is very suitable for use in precision industrial environments such as clean sheds and dust-free rooms.
In terms of customized processing, the 8-4080M provides a variety of connection methods, which is convenient for flexible assembly according to production requirements and meets the construction needs of different specifications. Its environmentally friendly material is not only easy to maintain, but also recyclable, which provides support for the sustainable development of enterprises. The 8-4080M industrial aluminum profiles are ideal for precision engineering scenarios, providing a solid and flexible support system for clean and dust-free environments, improving the stability and efficiency of the entire production line.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| 6-4040 |  |
 |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| 8-4040F |  |
 |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 | Wx:5.62cm3 Wy:5.62cm3 |
| 8-4040GG |  |
 |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 | Wx:3.87cm3 Wy:3.87cm3 |
| 8-4040T |  |
 |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 | Wx:2.55cm3 Wy:2.55cm3 |
| 8-4040LC |  |
 |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 | Wx:3.18cm3 Wy:3.18cm3 |
| 8-4040W |  |
 |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 | Wx:3.91cm3 Wy:3.91cm3 |
| 8-4040B |  |
 |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| 8-4040LD |  |
 |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 | Wx:3.11cm3 Wy:3.11cm3 |
| 8-4040C |  |
 |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 | Wx:3.66cm3 Wy:3.66cm3 |
| 8-4040D |  |
 |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 | Wx:4.99cm3 Wy:4.99cm3 |
| 8-4040E |  |
 |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 | Wx:4.48cm3 Wy:4.48cm3 |
| 8-4040EE |  |
 |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 | Wx:4.32cm3 Wy:4.48cm3 |
| 10-4040H |  |
 |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| 8-4040R |  |
 |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 | Wx:3.55cm3 Wy:3.55cm3 |
| 10-4060H |  |
 |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 | Wx:6.67cm3 Wy:9.23cm3 |
| 8-4080GA |  |
 |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 | Wx:7.21cm3 Wy:13.65cm3 |
| 8-4080C |  |
 |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 | Wx:6.86cm3 Wy:13.08cm3 |

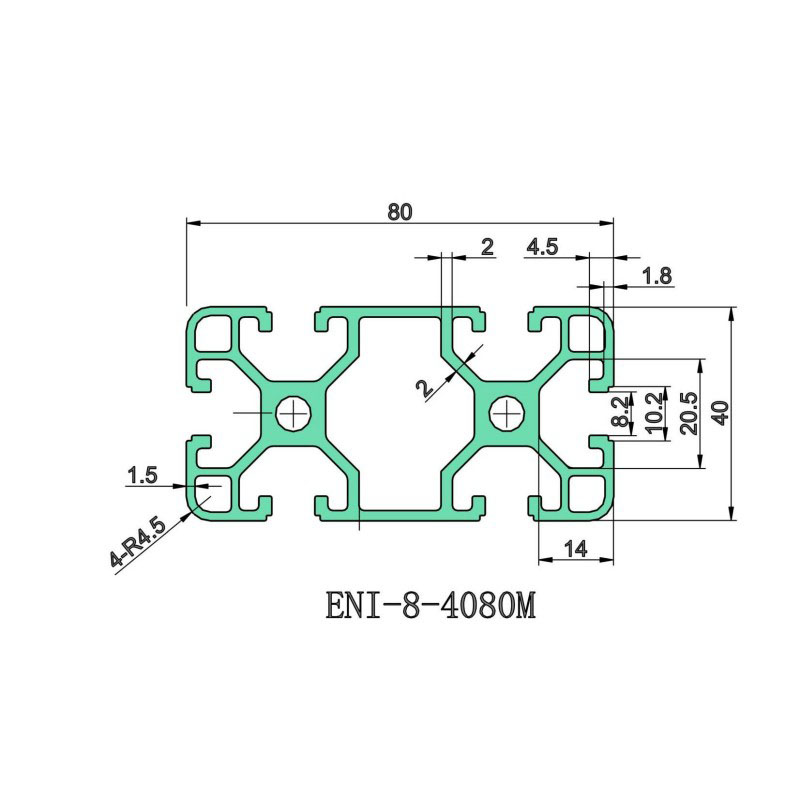

| 8-4080M | |
 |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 | Wx:7.00cm3 Wy:13.23cm3 |
| 8-4080F |  |
 |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 | Wx:9.83cm3 Wy:19.83cm3 |
| 10-4080H |  |
 |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 | Wx:8.07cm3 Wy:15.43cm3 |
| 8-4080 |  |
 |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 | Wx:8.24cm3 Wy:16.48cm3 |
| 8-4080I |  |
 |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 | Wx:9.56cm3 Wy:18.33cm3 |
| 8-40120 |  |
 |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 | Wx:12.76cm3 Wy:36.63cm3 |
| 8-40120E |  |
 |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 | Wx:12.98cm3 Wy:39.71cm3 |
| 8-40160 |  |
 |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 | Wx:19.92cm3 Wy:69.99cm3 |
| 8-40160B |  |
 |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 | Wx:15.96cm3 Wy:57.22cm3 |
