1 / 2
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-4040 |  |
 |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040F |  |
 |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 | Wx:5.62cm3 Wy:5.62cm3 |
| E&I-8-4040GG |  |
 |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 | Wx:3.87cm3 Wy:3.87cm3 |
| E&I-8-4040T |  |
 |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 | Wx:2.55cm3 Wy:2.55cm3 |
| E&I-8-4040LC |  |
 |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 | Wx:3.18cm3 Wy:3.18cm3 |
| E&I-8-4040W |  |
 |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 | Wx:3.91cm3 Wy:3.91cm3 |
| E&I-8-4040B |  |
 |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040LD |  |
 |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 | Wx:3.11cm3 Wy:3.11cm3 |
| E&I-8-4040C |  |
 |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 | Wx:3.66cm3 Wy:3.66cm3 |
| E&I-8-4040D |  |
 |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 | Wx:4.99cm3 Wy:4.99cm3 |
| E&I-8-4040E |  |
 |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 | Wx:4.48cm3 Wy:4.48cm3 |
| E&I-8-4040EE |  |
 |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 | Wx:4.32cm3 Wy:4.48cm3 |
| E&I-10-4040H |  |
 |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040R |  |
 |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 | Wx:3.55cm3 Wy:3.55cm3 |
| E&I-10-4060H |  |
 |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 | Wx:6.67cm3 Wy:9.23cm3 |
| E&I-8-4080GA |  |
 |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 | Wx:7.21cm3 Wy:13.65cm3 |
| E&I-8-4080C |  |
 |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 | Wx:6.86cm3 Wy:13.08cm3 |
| E&I-8-4080M |  |
 |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 | Wx:7.00cm3 Wy:13.23cm3 |
| E&I-8-4080F |  |
 |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 | Wx:9.83cm3 Wy:19.83cm3 |
| E&I-10-4080H |  |
 |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 | Wx:8.07cm3 Wy:15.43cm3 |
| E&I-8-4080 |  |
 |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 | Wx:8.24cm3 Wy:16.48cm3 |
| E&I-8-4080I |  |
 |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 | Wx:9.56cm3 Wy:18.33cm3 |
| E&I-8-40120 |  |
 |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 | Wx:12.76cm3 Wy:36.63cm3 |
| E&I-8-40120E |  |
 |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 | Wx:12.98cm3 Wy:39.71cm3 |
| E&I-8-40160 |  |
 |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 | Wx:19.92cm3 Wy:69.99cm3 |
| E&I-8-40160B |  |
 |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 | Wx:15.96cm3 Wy:57.22cm3 |

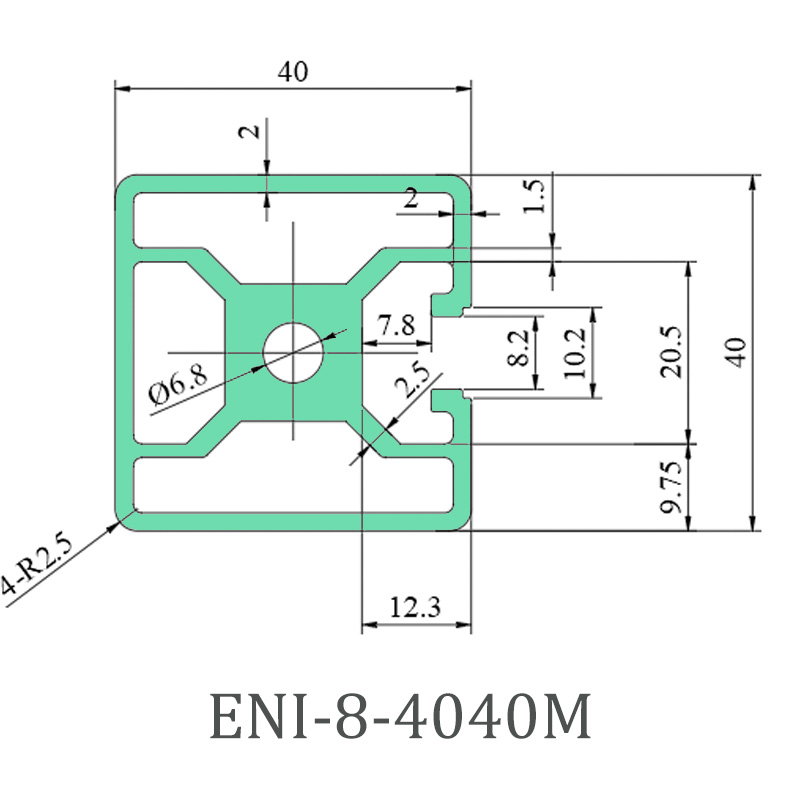

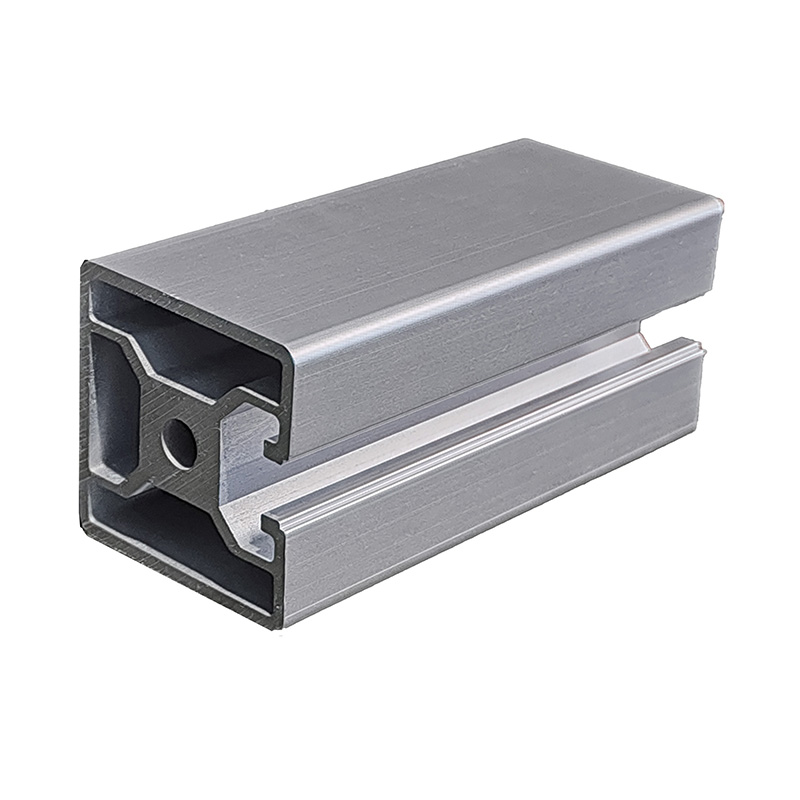

In home storage solutions, traditional panel furniture often faces problems such as excessive formaldehyde and easy deformation and cracking. The cross-border application of industrial aluminum profiles has brought new solutions to families pursuing health and personalization. Home storage cabinets built with ENI-8-4040M industrial aluminum profiles as the frame are becoming the new favorite of home furnishing groups.
The structural design of this aluminum profile locker is simple and clear. The overall frame is constructed of 4040 aluminum profiles, and the connections are fastened with standardized 90-degree brackets and bolts. No welding or complex carpentry operations are required — ordinary people can complete the assembly independently according to the drawings.
The internal compartments of the frame, the surroundings and the top of the cabinet can be matched with household wooden boards. The material can be freely selected, which can not only adapt to warm styles such as Nordic and logs, but also create a neat industrial style texture.
Wooden boards paired with metal hinges and external handles — easy to open and close, suitable for traditional and rustic interiors.
Acrylic sliding doors with a clean and traceless front — ideal for modern minimalist home styles with an invisible, seamless effect.
Compared with traditional wooden storage cabinets, the 4040 aluminum profile frame has a load-bearing capacity of up to 500 kilograms, which can easily meet the storage needs of household sundries, kitchen utensils, clothing, etc. It is not easy to deform and loosen after long-term use. The metal material does not release formaldehyde, making your stay more secure. It is very convenient to assemble and disassemble, and can be reused when moving in the future.
Complete solutions are provided for users with different needs: whether you want to wholesale aluminum profiles and supporting accessories for DIY, or you need customized finished products, we can satisfy them. Full-process processing services such as cutting, drilling, and tapping are available, alongside support for drawing customization and design assistance.
For DIY enthusiasts, they only need to provide CAD drawings to customize unique and individual aluminum profile components, allowing their ideas to be easily implemented.
A: The 4040 aluminum profile frame features a high load-bearing capacity of up to 500 kilograms, easily handling household sundries, heavy kitchen utensils, and garments without deformation.
A: Yes, they are highly safe and eco-friendly. Unlike traditional wooden panels that may release hazardous chemicals, the metal aluminum profile frame has zero formaldehyde release.
A: The assembly is highly DIY-friendly. The frame is put together using standardized 90-degree brackets and bolts. No welding or specialized carpentry operations are required.
A: Absolutely. You can integrate wood boards for a warm rustic/Nordic style or use acrylic sliding doors for a modern minimalist look. You can choose different options based on your design preferences.
A: Yes. Full-process processing services including precise cutting, drilling, and tapping are provided. Custom designs are supported based on user-supplied drawings or CAD files.
A: Yes, because the construction relies on standardized bolted connections rather than welding. The frame can be completely disassembled, flat-packed, and reconstructed elsewhere, making it highly reusable and move-friendly.
