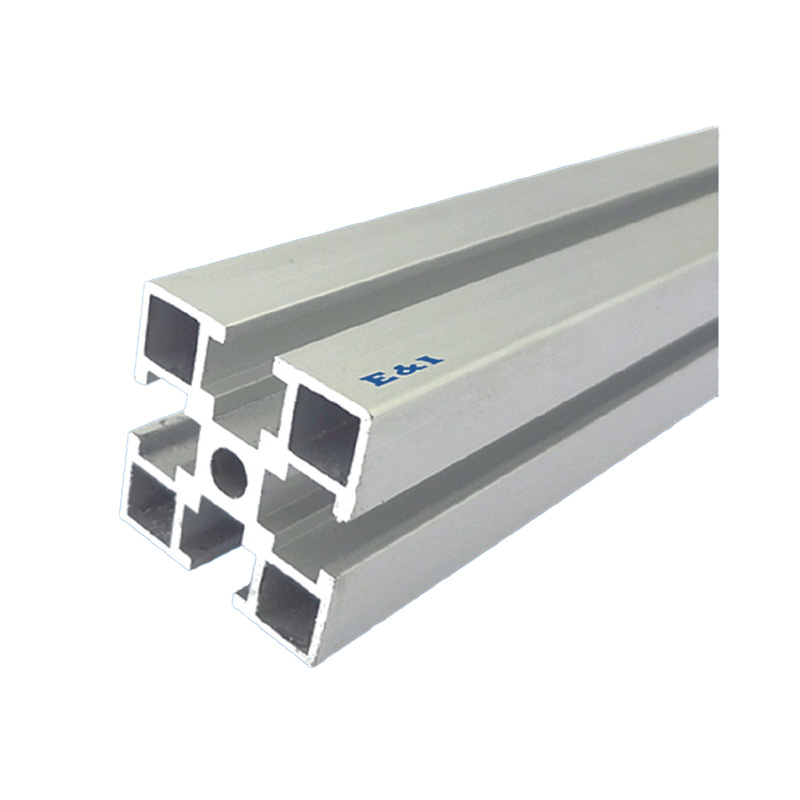

Industrial aluminum extrusions, industrial aluminum alloy profiles, assembly line profiles. Industrial aluminum profiles are an alloy material with aluminum as the main component. Aluminum rods are hot-melted and extruded to obtain aluminum materials with different cross-sectional shapes. However, the proportion of the added alloy is different, and the mechanical properties and application fields of the produced industrial aluminum profiles are also different.

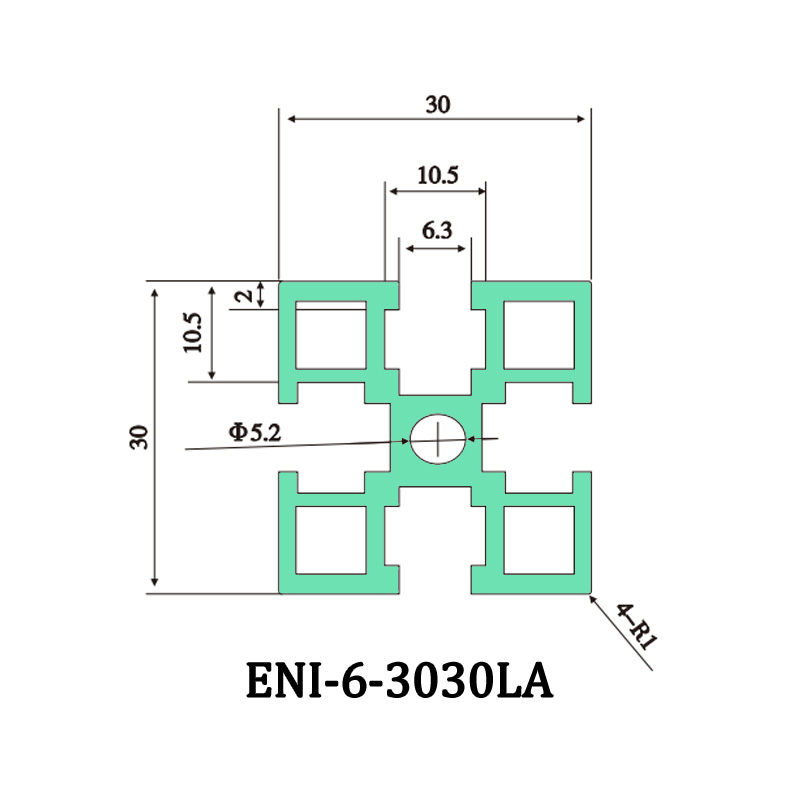

After the surface of the ENI-6-3030LA industrial aluminum profile has been oxidized, it has a very beautiful appearance and is stain-resistant. Even if it is stained, it is very easy to clean. When assembled into a product, profiles of different specifications are used according to different load-bearing loads, and matching aluminum profile accessories are used. No welding is required. It is green, environmentally friendly, lightweight and easy to transport.
It can support the customization of finished products and the sale of aluminum profiles. The sales can be cut for free. Customization can be customized according to drawings and designed by a professional team. The physical effect is excellent.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-3030 |  |
 |
0.88kg/m | Ix:2.8cm4 Iy:2.8cm4 |
Wx:1.87cm3 Wy:1.87cm3 |
| E&I-8-3030F |  |
 |
0.9kg/m | Ix:2.9cm4 Iy:2.9cm4 |
Wx:1.93cm3 Wy:1.93cm3 |
| E&I-8-3030A |  |
 |
0.78kg/m | Ix:2.47cm4 Iy:2.47cm4 |
Wx:1.65cm3 Wy:1.65cm3 |
| E&I-8-3030ME |  |
 |
0.91kg/m | Ix:2.75cm4 Iy:3.11cm4 |
Wx:1.83cm3 Wy:2.07cm3 |
| E&I-8-3030M |  |
 |
0.9kg/m | Ix:3.0cm4 Iy:3.0cm4 |
Wx:2.00cm3 Wy:2.00cm3 |
| ENI-6-3030G |  |
 |
- | - | - |
| E&I-8-3030R |  |
 |
0.88kg/m | Ix:2.56cm4 Iy:2.56cm4 |
Wx:1.71cm3 Wy:1.71cm3 |
| E&I-8-3040 |  |
 |
1.42kg/m | Ix:6.80cm4 Iy:7.99cm4 |
Wx:3.4cm3 Wy:5.33cm3 |
| E&I-8-3060 |  |
 |
1.61kg/m | Ix:5.36cm4 Iy:20.28cm4 |
Wx:3.57cm3 Wy:6.76cm3 |
| ENI-6-3060C |  |
 |
- | - | - |
| E&I-8-3090 |  |
 |
2.39kg/m | Ix:7.92cm4 Iy:64.62cm4 |
Wx:5.28cm3 Wy:14.36cm3 |
| E&I-8-30120 |  |
 |
3.40kg/m | Ix:11.91cm4 Iy:172.57cm4 |
Wx:7.94cm3 Wy:28.76cm3 |
| E&I-8-30150 |  |
 |
7.40kg/m | Ix:23.79cm4 Iy:455.75cm4 |
Wx:15.86cm3 Wy:60.77cm3 |
| E&I-8-30150A |  |
 |
3.56kg/m | Ix:12.92cm4 Iy:265.86cm4 |
Wx:8.61cm3 Wy:35.45cm3 |
They are alloy materials with aluminum as the main component, produced by hot-melting and extruding aluminum rods into different cross-sectional shapes for various mechanical and industrial assembly applications.
The oxidation treatment gives the profiles an elegant, stain-resistant finish. It makes the surface beautiful and easy to clean in case of stains.
No, welding is not required. The structure can be easily assembled using matching aluminum profile accessories, making it eco-friendly, lightweight, and simple to transport.
Yes. Customization of finished products is fully supported based on technical drawings and designed by a professional team to ensure excellent physical results.
Yes, the aluminum profiles can be cut for free during the sales process to meet your specific length and dimensional requirements.
