| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-6-4040 | ![]() |
![]() |
1.25kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040F | ![]() |
![]() |
1.81kg/m | Ix:11.23cm4 Iy:11.23cm4 | Wx:5.62cm3 Wy:5.62cm3 |
| E&I-8-4040GG | ![]() |
![]() |
1.32kg/m | Ix:7.73cm4 Iy:7.73cm4 | Wx:3.87cm3 Wy:3.87cm3 |
| E&I-8-4040T | ![]() |
![]() |
0.89kg/m | Ix:5.09cm4 Iy:5.09cm4 | Wx:2.55cm3 Wy:2.55cm3 |
| E&I-8-4040LC | ![]() |
![]() |
1.13kg/m | Ix:6.37cm4 Iy:6.37cm4 | Wx:3.18cm3 Wy:3.18cm3 |
| E&I-8-4040W | ![]() |
![]() |
1.33kg/m | Ix:7.82cm4 Iy:7.82cm4 | Wx:3.91cm3 Wy:3.91cm3 |
| E&I-8-4040B | ![]() |
![]() |
1.64kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040LD | ![]() |
![]() |
1.05kg/m | Ix:6.21cm4 Iy:6.21cm4 | Wx:3.11cm3 Wy:3.11cm3 |
| E&I-8-4040C | ![]() |
![]() |
1.29kg/m | Ix:7.32cm4 Iy:7.32cm4 | Wx:3.66cm3 Wy:3.66cm3 |
| E&I-8-4040D | ![]() |
![]() |
1.85kg/m | Ix:9.98cm4 Iy:9.98cm4 | Wx:4.99cm3 Wy:4.99cm3 |
| E&I-8-4040E | ![]() |
![]() |
1.67kg/m | Ix:8.96cm4 Iy:8.96cm4 | Wx:4.48cm3 Wy:4.48cm3 |
| E&I-8-4040EE | ![]() |
![]() |
1.65kg/m | Ix:8.63cm4 Iy:8.96cm4 | Wx:4.32cm3 Wy:4.48cm3 |
| E&I-10-4040H | ![]() |
![]() |
1.51kg/m | Ix:8.65cm4 Iy:8.65cm4 | Wx:4.33cm3 Wy:4.33cm3 |
| E&I-8-4040R | ![]() |
![]() |
1.50kg/m | Ix:7.10cm4 Iy:7.10cm4 | Wx:3.55cm3 Wy:3.55cm3 |
| E&I-10-4060H | ![]() |
![]() |
2.27kg/m | Ix:13.33cm4 Iy:27.69cm4 | Wx:6.67cm3 Wy:9.23cm3 |
| E&I-8-4080GA | ![]() |
![]() |
2.31kg/m | Ix:14.41cm4 Iy:54.58cm4 | Wx:7.21cm3 Wy:13.65cm3 |
| E&I-8-4080C | ![]() |
![]() |
2.22kg/m | Ix:13.72cm4 Iy:52.30cm4 | Wx:6.86cm3 Wy:13.08cm3 |
| E&I-8-4080M | ![]() |
![]() |
2.28kg/m | Ix:13.99cm4 Iy:52.91cm4 | Wx:7.00cm3 Wy:13.23cm3 |
| E&I-8-4080F | ![]() |
![]() |
3.30kg/m | Ix:19.66cm4 Iy:79.30cm4 | Wx:9.83cm3 Wy:19.83cm3 |
| E&I-10-4080H | ![]() |
![]() |
2.64kg/m | Ix:16.14cm4 Iy:61.71cm4 | Wx:8.07cm3 Wy:15.43cm3 |
| E&I-8-4080 | ![]() |
![]() |
2.94kg/m | Ix:16.48cm4 Iy:65.91cm4 | Wx:8.24cm3 Wy:16.48cm3 |
| E&I-8-4080I | ![]() |
![]() |
3.26kg/m | Ix:19.11cm4 Iy:73.31cm4 | Wx:9.56cm3 Wy:18.33cm3 |
| E&I-8-40120 | ![]() |
![]() |
4.28kg/m | Ix:25.52cm4 Iy:219.79cm4 | Wx:12.76cm3 Wy:36.63cm3 |
| E&I-8-40120E | ![]() |
![]() |
4.65kg/m | Ix:25.96cm4 Iy:238.31cm4 | Wx:12.98cm3 Wy:39.71cm3 |
| E&I-8-40160 | ![]() |
![]() |
6.23kg/m | Ix:39.83cm4 Iy:559.92cm4 | Wx:19.92cm3 Wy:69.99cm3 |
| E&I-8-40160B | ![]() |
![]() |
5.24kg/m | Ix:31.92cm4 Iy:457.75cm4 | Wx:15.96cm3 Wy:57.22cm3 |
For manufacturing factories that independently develop facial tissue, new product research and development is the core to maintaining market competitiveness. Each facial tissue sample with new materials, new designs, and new functions needs to be displayed intuitively and clearly to the outside world, so that visiting customers can feel the innovative strength of the product at the first time. A professional display cabinet adapted to the needs of the factory can not only achieve classified storage of samples, but also enhance the brand image through regular and elegant display. The ENI-8-4040GT aluminum profile product display cabinet is the best choice for displaying samples in this type of factory.

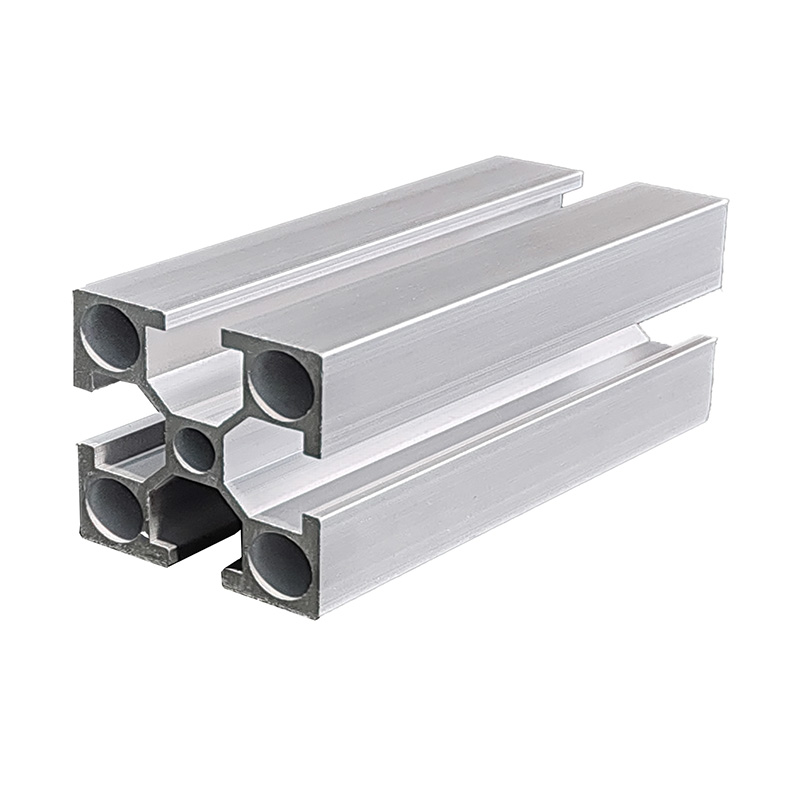

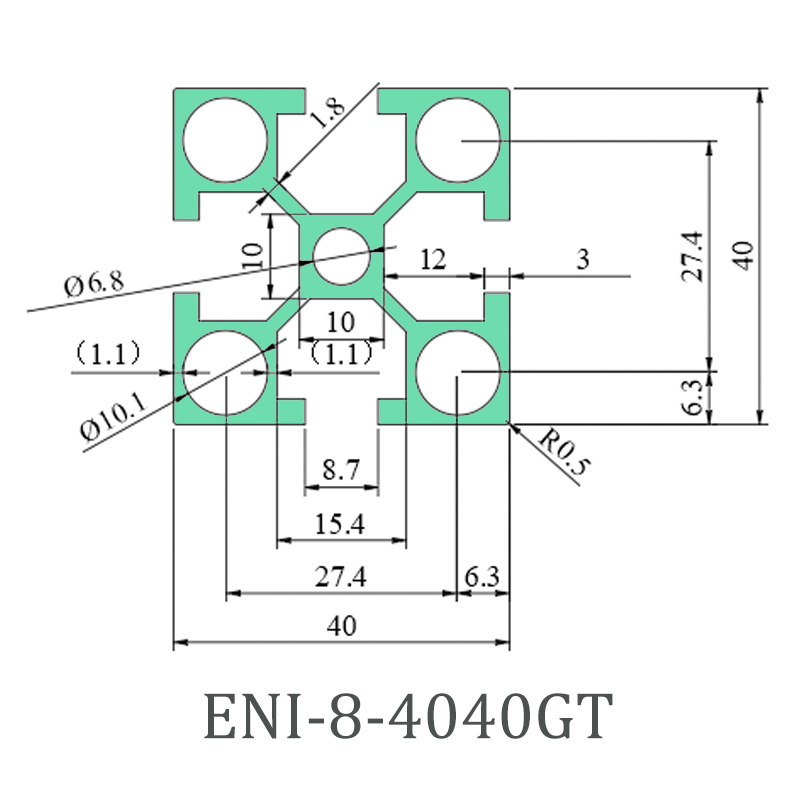

This aluminum display cabinet adopts the ENI-8-4040GT specification profile with a slot width of 8mm, which is adapted to the load-bearing requirements of industrial sample storage. For lightweight samples such as facial tissues and wet wipes, the load-bearing capacity is more than sufficient, making it an ideal carrier for the storage and display of samples in the R&D department. Compared with traditional wooden or iron display cabinets, its core advantages are first reflected in the structure and installation: the overall frame uses aluminum profiles as the core base material, and is spliced through built-in special connectors. It is solid and will not shake or deform after long-term use. It also makes the appearance simple and smooth. There are no exposed connectors to damage the overall beauty. It takes into account both structural strength and visual texture. The assembly process does not require complicated welding processes. Ordinary workers can quickly complete the construction, and the efficiency is much higher than that of traditional cabinets.
In terms of display function design, highly transparent acrylic panels are used around the cabinet as the panel, with a light transmittance of up to 92%, far exceeding that of ordinary glass. Customers can clearly observe the packaging design and material texture of each sample without opening the cabinet door, perfectly presenting the product characteristics of facial tissue. In order to facilitate the removal and replacement of samples, the acrylic panel on one side is designed to be push-pull and open. It opens and closes smoothly and does not occupy any space. It is both beautiful and practical.
In response to the need for frequent adjustments to the layout of factory offices and exhibition halls, this display cabinet can also be equipped with Fuma casters at the bottom to facilitate easy and flexible turning. When the position needs to be adjusted, there is no need for multiple people to carry it. One person can complete the shift, adapting to changing space layout needs.
A: The ENI-8-4040GT profile features an 8mm slot width, providing exceptional structural strength that prevents shaking or warping over time. It is lightweight yet strong enough to support heavy sample loads, making it ideal for clean, modern product showcases.
A: No welding is required. The modular design uses built-in specialized connectors that fit directly into the profiles, keeping the exterior clean while significantly speeding up installation.
A: The highly transparent acrylic panels provide up to 92% light transmittance, offering better clarity for customers to observe material textures. Acrylic is also much lighter and safer, reducing the risk of shattering in busy factory environments.
A: The display cabinet can be configured with bottom-mounted Fuma casters. This allows a single person to smoothly push and turn the cabinet, making it easy to adapt to changing floor plans and showroom layouts.
A: The side push-pull configuration allows the cabinet to open and close smoothly without extending into walkways. This space-saving mechanism protects the samples from dust while ensuring easy access.
