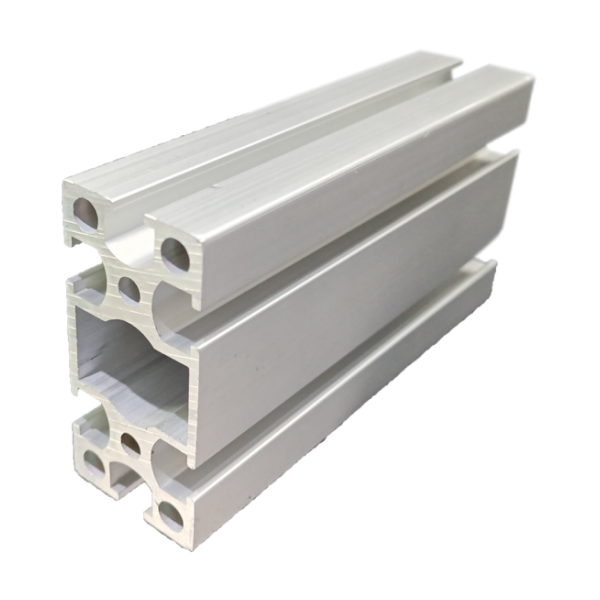

It is especially important to choose a professional aluminum profile manufacturer and supporting accessories. When customizing a fish tank with ENI-6-3060C industrial aluminum profile, it can stably support the weight of a fish tank full of water. Glass fixings can be directly installed on the flat surface without the need for additional adapters, which not only reduces costs but also improves installation efficiency. Whether you are building a simple desktop small fish tank or a large ecological fish tank, you can achieve personalized size and shape through precise cutting and drilling.
When customizing lightweight products, be aware of low-price traps, non-standard materials, poor load-bearing and stability, and are not recommended for load-bearing structures. Purchasing ENI-6-3060C profile frame has high space utilization and ease of installation is the first choice. The "talent" of industrial aluminum profiles goes far beyond lightness and strength. From corrosion resistance to easy processing, from thermal conductivity and non-magnetic to green recyclability, it has always supported the innovation and development of many industries with a low-key and reliable attitude. From basic performance to hidden advantages, every feature of industrial aluminum profiles is precisely in line with the development trend of efficient, green and customized industrial manufacturing.
| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |
|---|---|---|---|---|---|
| E&I-8-3030 | ![]() |
![]() |
0.88kg/m | Ix:2.8cm4 Iy:2.8cm4 | Wx:1.87cm3 Wy:1.87cm3 |
| E&I-8-3030F | ![]() |
![]() |
0.9kg/m | Ix:2.9cm4 Iy:2.9cm4 | Wx:1.93cm3 Wy:1.93cm3 |
| E&I-8-3030A | ![]() |
![]() |
0.78kg/m | Ix:2.47cm4 Iy:2.47cm4 | Wx:1.65cm3 Wy:1.65cm3 |
| E&I-8-3030ME | ![]() |
![]() |
0.91kg/m | Ix:2.75cm4 Iy:3.11cm4 | Wx:1.83cm3 Wy:2.07cm3 |
| E&I-8-3030M | ![]() |
![]() |
0.9kg/m | Ix:3.0cm4 Iy:3.0cm4 | Wx:2.00cm3 Wy:2.00cm3 |
| ENI-6-3030G | ![]() |
![]() |
|||
| E&I-8-3030R | ![]() |
![]() |
0.88kg/m | Ix:2.56cm4 Iy:2.56cm4 | Wx:1.71cm3 Wy:1.71cm3 |
| E&I-8-3040 | ![]() |
![]() |
1.42kg/m | Ix:6.80cm4 Iy:7.99cm4 | Wx:3.4cm3 Wy:5.33cm3 |
| E&I-8-3060 | ![]() |
![]() |
1.61kg/m | Ix:5.36cm4 Iy:20.28cm4 | Wx:3.57cm3 Wy:6.76cm3 |

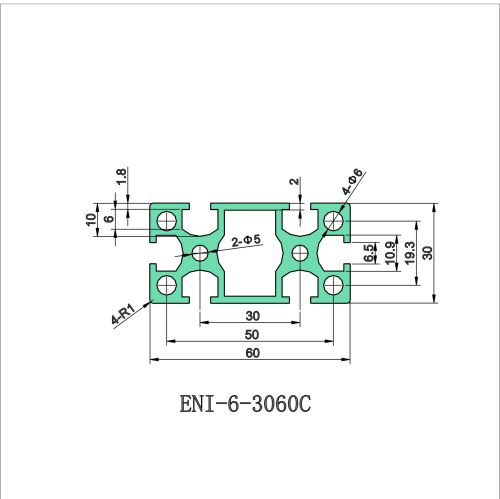

| ENI-6-3060C | ![]() |
![]() |
|||
| E&I-8-3090 | ![]() |
![]() |
2.39kg/m | Ix:7.92cm4 Iy:64.62cm4 | Wx:5.28cm3 Wy:14.36cm3 |
| E&I-8-30120 | ![]() |
![]() |
3.40kg/m | Ix:11.91cm4 Iy:172.57cm4 | Wx:7.94cm3 Wy:28.76cm3 |
| E&I-8-30150 | ![]() |
![]() |
7.40kg/m | Ix:23.79cm4 Iy:455.75cm4 | Wx:15.86cm3 Wy:60.77cm3 |
| E&I-8-30150A | ![]() |
![]() |
3.56kg/m | Ix:12.92cm4 Iy:265.86cm4 | Wx:8.61cm3 Wy:35.45cm3 |
